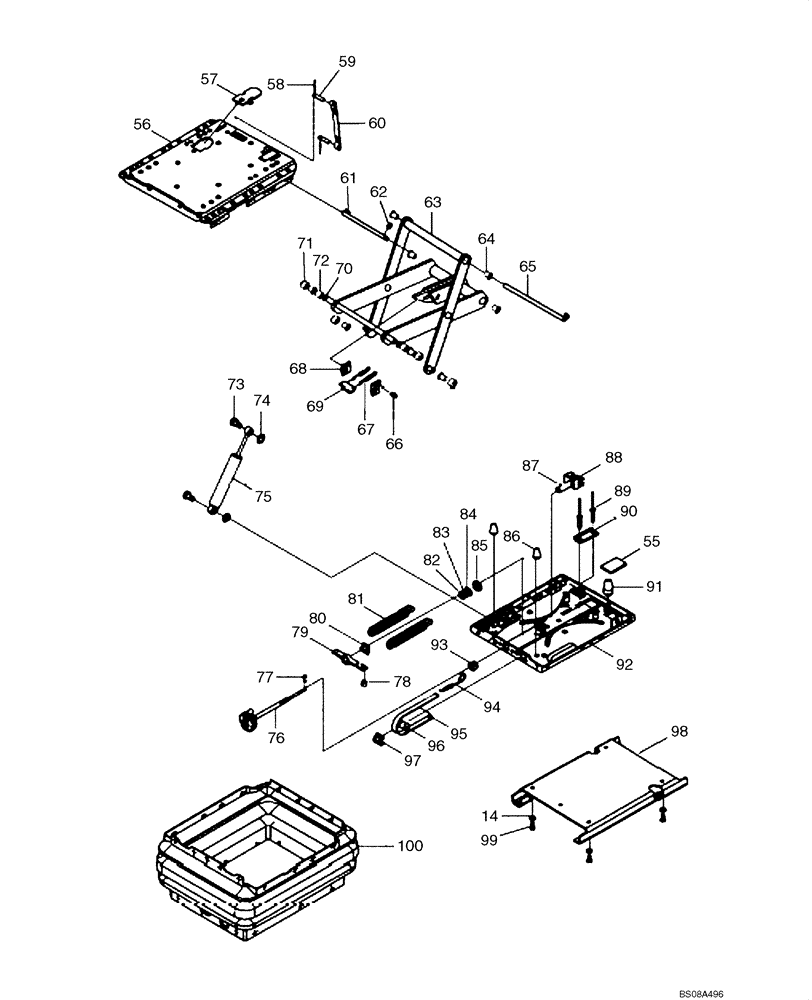

Запчасти Case 1221E (09-21[01]) - SEAT, MECH GRAMMER (B) (72LH-35440) (2) (09) - CHASSIS/ATTACHMENTS

72LH-35440

SEAT

ASSY 3" MECHANICAL; Incl. Refs. 56 - 100, Also Incl. Parts On Figure 09-20 (01)

1шт.

56

ZGBH-00057

PLATE

UPPER, SUSPENSION

1шт.

57

ZGBH-00058

PANEL

TRIM

1шт.

58

ZGBH-00059

RIVET

POP

2шт.

59

ZGBH-00060

PLATE

2шт.

60

ZGBH-00061

BELT

Tether

1шт.

61

ZGBH-00062

PIN

1шт.

62

ZGBH-00063

LOCK WASHER

WASHER

1шт.

63

ZGBH-00064

ARM

SWING

1шт.

64

ZGBH-00065

BUSHING

PLASTIC

8шт.

65

ZGBH-00066

PIN

1шт.

66

ZGBH-00067

BOLT

1шт.

67

ZGBH-00068

SPRING

TENSION

2шт.

68

ZGBH-00069

PLATE

2шт.

69

ZGBH-00070

COVER

STRIP

1шт.

70

ZGBH-00071

WASHER

2шт.

71

ZGBH-00196

ROLLER

4шт.

72

ZGBH-00073

BUSHING

2шт.

73

ZGBH-00074

PIN

2шт.

74

ZGBH-00075

CIRCLIP

WASHER

2шт.

75

ZGBH-00076

SHOCK ABSORBER

1шт.

76

ZGBH-00077

HANDLE

1шт.

77

ZGBH-00078

PIN

1шт.

78

ZGBH-00079

INSERT

1шт.

79

ZGBH-00080

BELLCRANK

BRACKET

1шт.

80

ZGBH-00081

FLANGE NUT

FLANGE NUT

1шт.

81

ZGBH-00082

SPRING

2шт.

82

ZGBH-00083

WASHER

1шт.

83

ZGBH-00084

BEARING

1шт.

84

ZGBH-00085

WASHER

1шт.

85

ZGBH-00086

WASHER

PLASTIC

1шт.

86

ZGBH-00087

RUBBER INSULATOR

2шт.

87

ZGBH-00088

FORK

GABEL

1шт.

88

ZGBH-00089

BEARING

TRIPPLE

1шт.

89

ZGBH-00090

RIVET

POP

2шт.

90

ZGBH-00097

ROLLER

U

1шт.

91

ZGBH-00092

RUBBER INSULATOR

1шт.

92

ZGBH-00093

PLATE

BOTTOM

1шт.

93

ZGBH-00094

BUSHING

1шт.

94

ZGBH-00095

SPRING

TENSION

1шт.

95

ZGBH-00198

INDICATOR

1шт.

96

ZGBH-00097

ROLLER

1шт.

97

ZGBH-00098

GUIDE

DEVICE

1шт.

98

ZGBH-00117

BOTTOM

PLATE

1шт.

99

ZGBH-00104

SCREW

HEX HD

4шт.

100

ZGBH-00101

BELLOWS

1шт.
