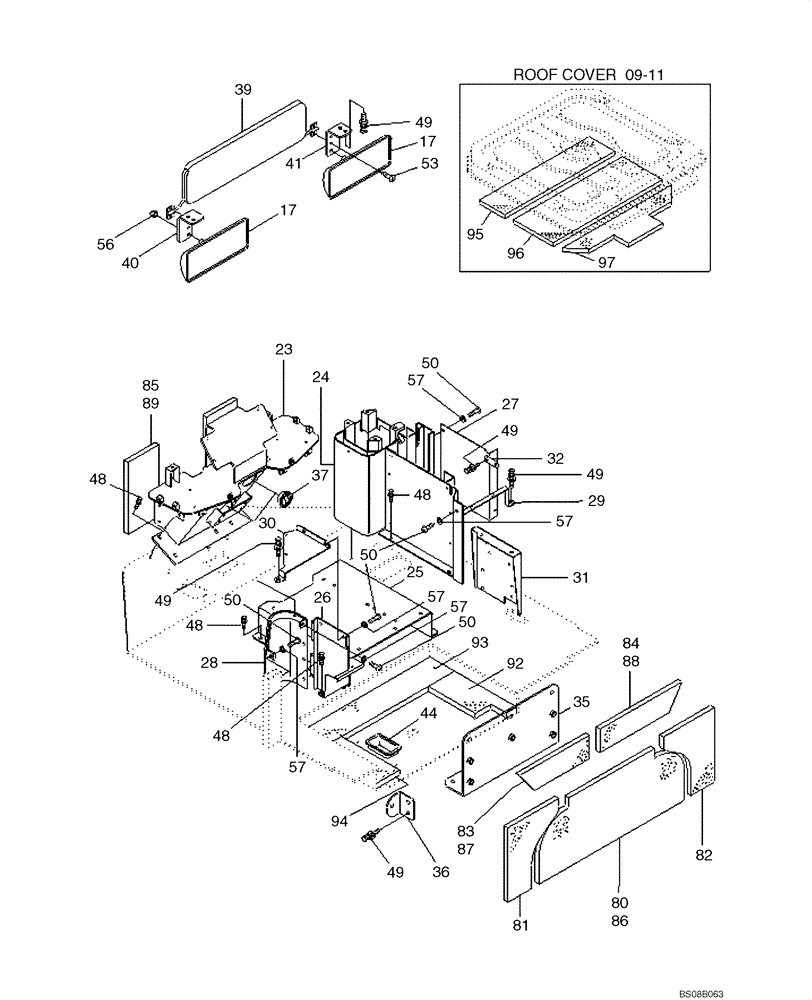

Запчасти Case 1221E (09-13[01]) - CAB ASSY, DASHBOARD, SEAT BASE (87700454) (2) (09) - CHASSIS/ATTACHMENTS

17

71LB-01170

MIRROR

ROOM

2шт.

23

71LB-11251

SUPPORT

WA, D/BOARD

1шт.

24

71LB-11421

SUPPORT

WA, CONSOLE

1шт.

25

71LB-05032

BASE

SEAT

1шт.

26

71LB-05041

BRACKET

WA

1шт.

27

71LB-05062

COVER

ELECTRIC

1шт.

28

71LB-05072

PROTECTION CAP

TANK

1шт.

29

71LB-05082

BRACKET

WA

1шт.

30

71LB-05091

BRACKET

WA

1шт.

31

71LB-11410

SUPPORT

WA, ELECTRIC

1шт.

32

71LB-05110

PLATE

WA, CONSOLE

1шт.

33

71LB-05121

COVER

WASHER TANK

1шт.

34

S145-120166

SCREW

FLAT HD

3шт.

35

71LB-11370

PLATE

WA, STORAGE BOX

1шт.

36

71LB-11380

PLATE

WA, STORAGE BOX

2шт.

37

71N6-03300

VENT

AIR

2шт.

39

74L3-04642

SUN VISOR

ASSY

1шт.

40

71LB-01710

PLATE

R/MIRROR, LH

1шт.

41

71LB-01720

PLATE

R/MIRROR, RH

1шт.

44

71E9-10640

GROMMET

A/C

2шт.

48

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

22шт.

48-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

49

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

19шт.

49-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

19шт.

49-2

892-11008

LOCK WASHER,8mm ID

19шт.

50

S161-080206

SCREW

RD HD

34шт.

53

S141-060152

SCREW

FLAT HD

4шт.

56

832-10406

NUT,M6 x 1, Cl 8

895-11008

4шт.

57

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

30шт.

80

71LB-01740

FOAM

REAR, LOW, CENTER

1шт.

81

71LB-01750

FOAM

REAR, LOW, LH

1шт.

82

71LB-01760

FOAM

REAR, LOW, RH

1шт.

83

71LB-01770

FOAM

REAR, UP, LH

1шт.

84

71LB-01780

FOAM

REAR, UP, RH

1шт.

85

71LB-01790

FOAM

FRONT

1шт.

86

71LB-01800

SHEET

RR, LOW, CENTER

1шт.

87

71LB-01810

SHEET

RR, UP, LH

1шт.

88

71LB-01820

SHEET

RR, UP, RH

1шт.

89

71LB-01830

SHEET

FRONT

1шт.

92

71LB-04090

FOAM

BOTTOM 1

1шт.

93

71LB-04100

FOAM

BOTTOM 2

1шт.

94

71LB-04110

FOAM

BOTTOM 3

1шт.

95

71LB-04130

FOAM

ROOF 1

1шт.

96

71LB-04140

FOAM

ROOF 2

1шт.

97

71LB-04150

FOAM

ROOF 3

1шт.
