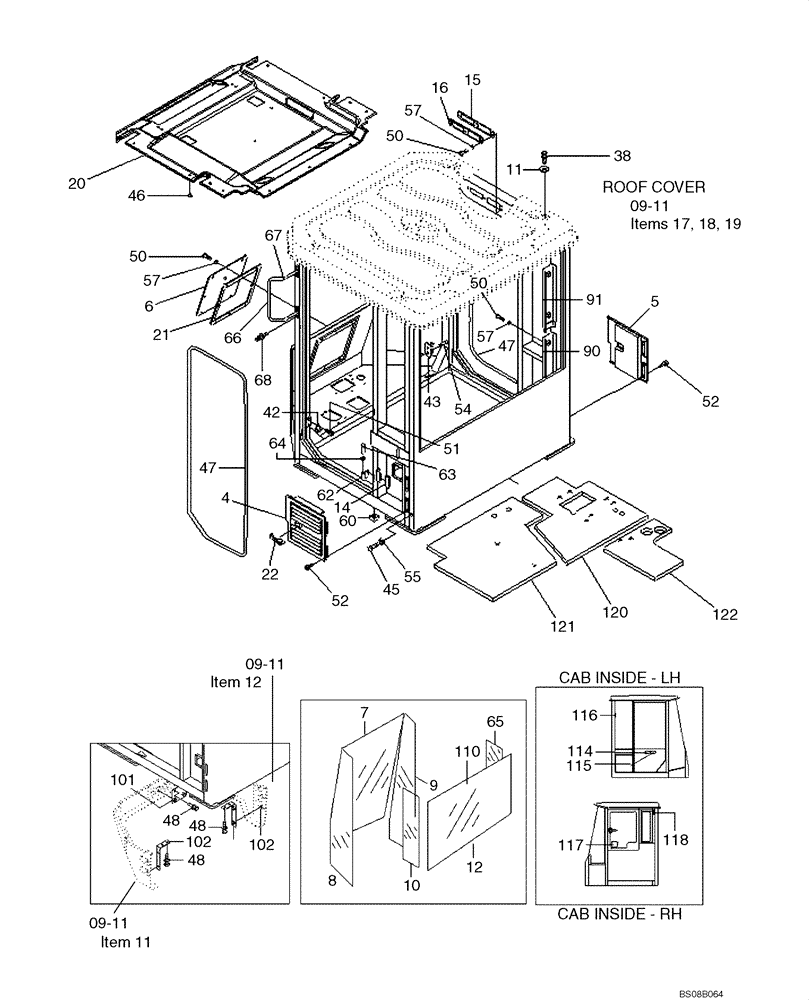

Запчасти Case 1221E (09-12[01]) - CAB ASSY, GLASS (87700454) (1) (09) - CHASSIS/ATTACHMENTS

72LH-35510

CAB

ASSY, FIXED WIN, L/NOISE; Not Illustrated

1шт.

72LH-35010

CAB

ASSY, S/WIN, L/NOISE; Not Illustrated

1шт.

72LH-35020

CAB

SUB ASSY; Not Illustrated

1шт.

1

71LH-12013

CAB

WA

1шт.

4

71LB-01041

COVER

ASSY, LH

1шт.

5

71LB-01051

COVER

ASSY, RH

1шт.

6

71LB-01061

COVER

WA, W/MOTOR

1шт.

7

71LB-01071

CAB GLASS

FRONT, CENTER

1шт.

8

71LB-01081

CAB GLASS

FRONT, SIDE, LH

1шт.

9

71LB-01091

CAB GLASS

FRONT,SIDE, RH

1шт.

10

71LB-01101

CAB GLASS

SIDE, LH

1шт.

11

71LB-01110

WASHER

ROOF COVER

4шт.

12

71LB-01121

CAB GLASS

REAR

1шт.

15

71LB-01151

PLATE

WA, CASSETTE

1шт.

16

71LB-01162

COVER

CASSETTE

1шт.

20

71LB-11450

ROOF LINING

HEAD

1шт.

21

71LB-01211

PAD

RUBBER

1шт.

22

71LB-01220

LATCH

ASSY

3шт.

38

S017-200202

BOLT

HEX

5шт.

42

71N6-02770

PIN

STRIKER

2шт.

43

71N6-02920

HOOK

1шт.

45

71EH-13150

SILENTBLOC

RUBBER

4шт.

46

E171-1310

PLUG

14шт.

47

S771-039500

WEATHERSTRIP

2шт.

48

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

48-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

50

S161-080206

SCREW

RD HD

20шт.

51

S145-080166

SCREW

FLAT HD

4шт.

52

S132-061656

CAPTIVE WASHER SCREW

W/WASHER

8шт.

54

S141-040206

SCREW

FLAT HD

2шт.

55

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

57

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

60

71LB-01560

FOAM

SPONGE

1шт.

62

71LB-01600

HINGE

6шт.

63

74L3-05330

PIN

HINGE

6шт.

64

74L3-04450

COPPER WASHER

COPPER

6шт.

65

71LB-01681

CAB GLASS

SIDE,RH

1шт.

66

71LB-01692

HANDRAIL

WA, LH

1шт.

67

71LB-01702

HANDRAIL

WA,RH

1шт.

68

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

68-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

68-2

892-11010

LOCK WASHER,M10

4шт.

90

71LB-20141

COVER

HARNESS LOW

1шт.

91

71LB-20151

COVER

HARNESS UP

1шт.

101

71LB-04190

PLATE

WA, FRONT

1шт.

102

71LB-04200

PLATE

WA, SIDE

2шт.

110

72LH-35070

SCREEN

ADHESIVE

1шт.

114

91LB-01230

DECAL

MAX H/REACH

1шт.

115

91LB-01240

DECAL

ROLL OVER

1шт.

116

91LB-01340

DECAL

HAMMER

1шт.

117

91N6-07261

DECAL

ALTERNATE EXIT

1шт.

118

91N6-07290

DECAL

FIRE EXTINGUISHER

1шт.

120

71LB-11261

FOAM

SPONGE, BOTTOM/LOW 1

1шт.

121

71LB-11271

FOAM

SPONGE, BOTTOM/LOW 2

1шт.

122

71LB-11281

FOAM

SPONGE, BOTTOM/LOW 3

1шт.

NSS

NOT SOLD SEPARAT

ELECTRIC CAB ASSY

1шт.
