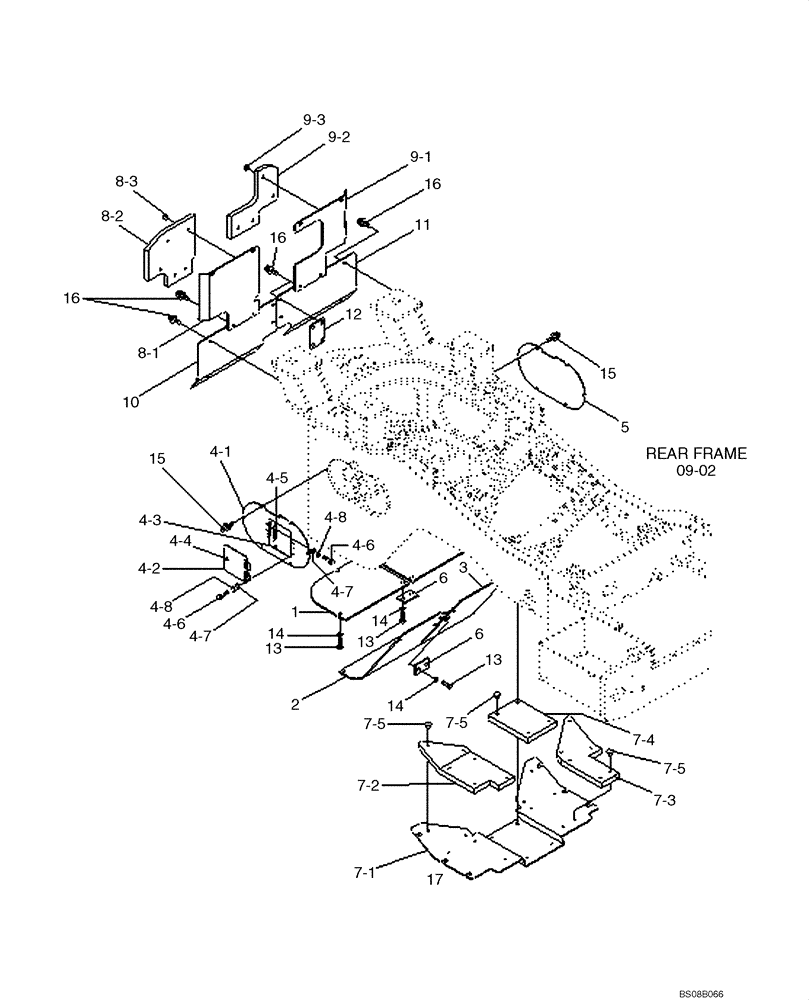

Запчасти Case 1221E (09-10[01]) - UNDER GUARD GROUP (87700452) (09) - CHASSIS/ATTACHMENTS

1

51L6-90080CY

PLATE

2шт.

2

51L6-90140CY

COVER

LH

1шт.

3

51L6-90150CY

COVER

RH

1шт.

4

52LH-90010

COVER

ASSY, LH

1шт.

4-1

51LH-90400

COVER

WA

1шт.

4-2

51LH-90440

COVER

WA

1шт.

4-3

74L3-11290

BUMPER

RUBBER; No Longer Available

2шт.

4-4

72LH-22270

LOCK

ASSY; Key P/N is 1964831C2

1шт.

4-5

51LH-90470

PLATE

1шт.

4-6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

4-7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

4-8

892-11006

LOCK WASHER,M6

6шт.

5

51LH-90020CY

COVER

RH

1шт.

6

51L6-90120CY

PLATE

3шт.

7-1

51LH-90111CY

PLATE

WA; Replaces 51LH-90111

1шт.

7-2

51LH-90130

FOAM

SPONGE, LH

1шт.

7-3

51LH-90140

FOAM

SPONGE, RH

1шт.

7-4

51LH-90300

FOAM

SPONGE

1шт.

7-5

71EM-51580

CAP

STUD BOLT

16шт.

8

51LH-90150CY

COVER

LH; Replaces 51LH-90150

1шт.

8-1

51LH-90160CY

COVER

WA; Replaces 51LH-90160

1шт.

8-2

51LH-90180

FOAM

SPONGE

1шт.

8-3

71EM-51580

CAP

STUD BOLT

5шт.

9

51LH-90190CY

COVER

RH; Replaces 51LH-90190

1шт.

9-1

51LH-90200CY

COVER

WA; Replaces 51LH-90200

1шт.

9-2

51LH-90220

FOAM

SPONGE

1шт.

9-3

71EM-51580

CAP

STUD BOLT

4шт.

10

51LH-90060CY

COVER

Replaces 51LH-90060

1шт.

11

51LH-90070CY

COVER

Replaces 51LH-90070

1шт.

12

51LH-90090CY

PLATE

TAPPED; Replaces 51LH-90090

1шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

22шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

12шт.

15-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

16

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

16шт.

16-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

17

51LH-90510CY

PLATE

1шт.
