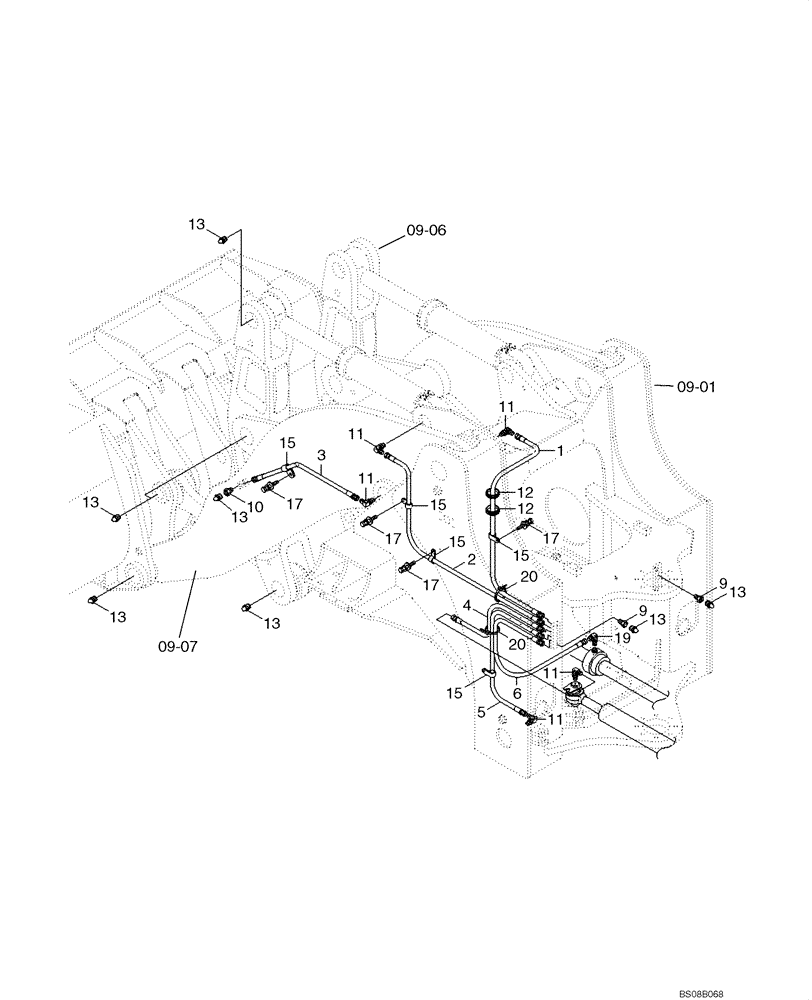

Запчасти Case 1221E (09-08[01]) - GREASE LINES, FRONT (87700421) (09) - CHASSIS/ATTACHMENTS

1

P400-042026

HOSE ASSY.

ASSY, COMPACT; Repalces P400-042030

2шт.

2

P400-042036

HOSE

ASSY, COMPACT

2шт.

3

P400-042027

HOSE

ASSY, COMPACT

2шт.

4

P400-042016

HOSE

ASSY, COMPACT

2шт.

5

P400-042020

HOSE

ASSY, COMPACT

2шт.

6

P400-042016

HOSE

ASSY, COMP 0 x 45; Replaces P410-042018

1шт.

9

31LB-50020

HYD CONNECTOR

9шт.

10

P010-430011

HYD CONNECTOR

2шт.

11

61L1-3909

ELBOW

90

10шт.

12

S760-090804

GROMMET

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

22шт.

15

31L3-0354

CLAMP

12шт.

17

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

12шт.

17-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

17-2

892-11008

LOCK WASHER,8mm ID

12шт.

19

E231-0207

ELBOW

45

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

20шт.
