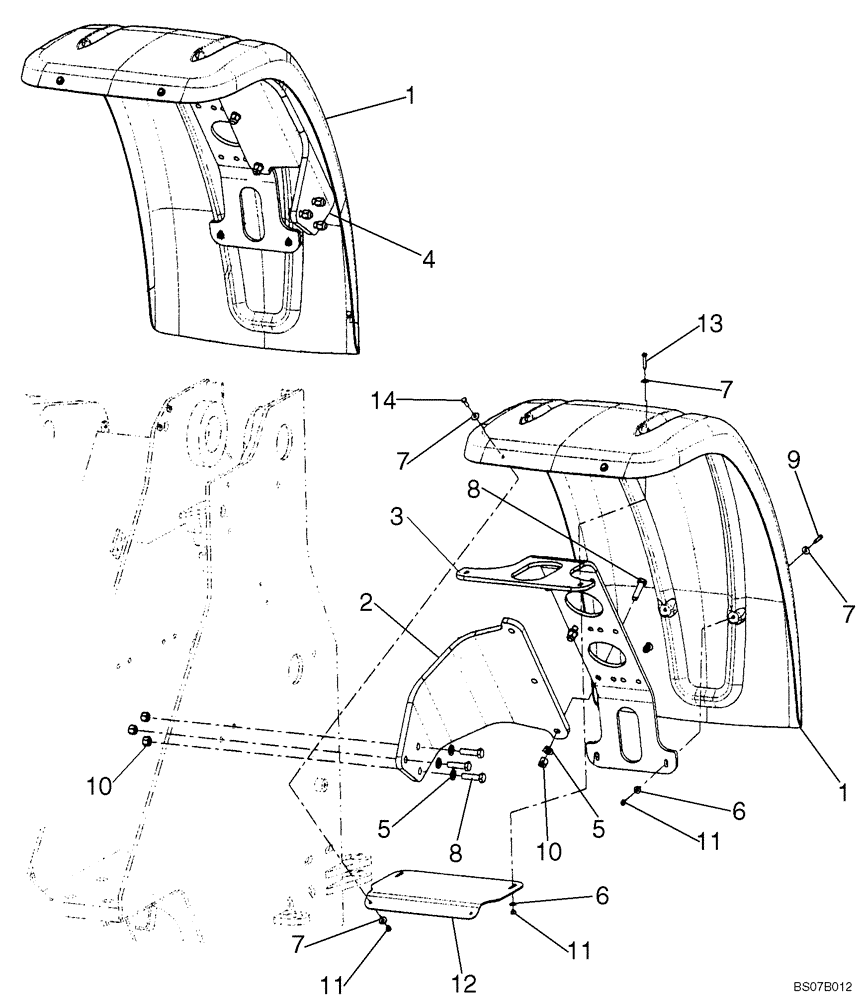

Запчасти Case 1221E (09-03[01]) - FENDERS, FRONT (87700447) (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

FENDER INSTALLATION, FRONT

1шт.

1

87610930

FRONT FENDER

2шт.

2

87576296

BRACKET

FENDER WIDE, LH

1шт.

3

87676688

BRACKET

Replaces 87576298 Bracket, Fender

2шт.

4

87576297

BRACKET

FENDER WIDE, RH

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

6

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

16шт.

8

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

9

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

10

832-10416

NUT,M16 x 2, Cl 8

12шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

12

87621742

BRACKET

FRONT FENDER

2шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

15

87621742

BRACKET

FENDER, FRONT GRAY; Not Illustrated (Replaces 87619006 Bracket Fender Front Unfinished)

1шт.
