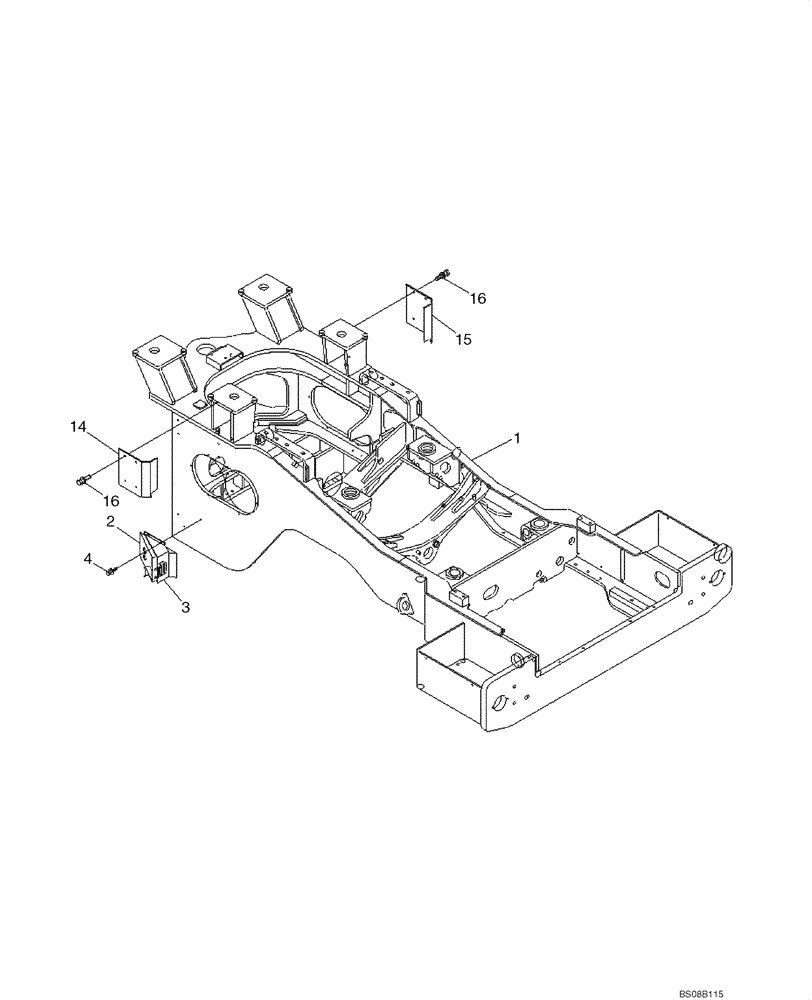

Запчасти Case 1221E (09-02[01]) - FRAME, REAR (87700448) (09) - CHASSIS/ATTACHMENTS

1

52LH-20010

FRAME

REAR ASSY

1шт.

2

74L3-00012CB

WHEEL CHOCK

2шт.

3

71L7-90070CB

BRACKET

ASSY

2шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

4-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

14

71LH-73011CY

COVER

SIDE, LH (LOWER)

1шт.

15

71LH-73021CY

COVER

SIDE, RH (LOWER)

1шт.

16

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

16-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.
