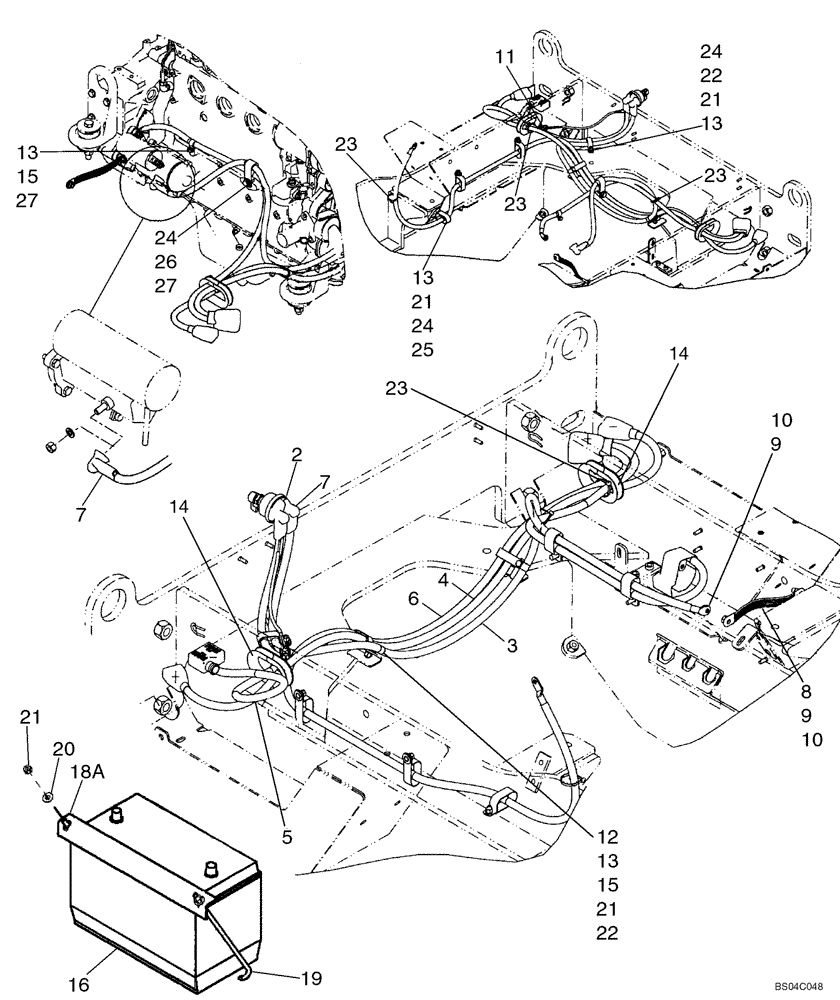

Запчасти Case 721D (04-17A) - BATTERY - CABLES WITH DENSO STARTER (04) - ELECTRICAL SYSTEMS

2

L126256

SWITCH

Master Disconnect

1шт.

3

8602881

GROUND CABLE

1шт.

4

87403980

ELECTRIC CABLE

Crossover

1шт.

5

435686A2

NEG BATTERY CABLE

1шт.

6

87439026

ELECTRIC CABLE

Positive; Replaces 8602636

1шт.

7

L126713

BOOT

3шт.

8

L126051

GROUND STRAP

Engine Block

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

3шт.

10

253347A1

NUT,Hex, M10 x 1.5

3/8; Brass

3шт.

11

L127676

WIRE HARNESS

Disconnect

1шт.

12

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

14

398771A1

CONDUIT

Battery Cable

2шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

16

BMF31EW

WET BATTERY

For Case US Only

2шт.

16

CCMF31EW

WET BATTERY

For Case Canada Only

2шт.

17

L51769

BATTERY, WET

BATTERY WET 900 Amp / 12V; If Used; Not Illustrated

2шт.

18

L124221

SUPPORT

Used with 900 Amp Battery; Not Illustrated

2шт.

18a

365191A1

STRAP

Used with 700 Amp Battery

2шт.

19

365357A1

ROD

Hold Down

4шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

13шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

22

R54363

CLAMP

3шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

25

L111928

CLAMP

3шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

27

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.
