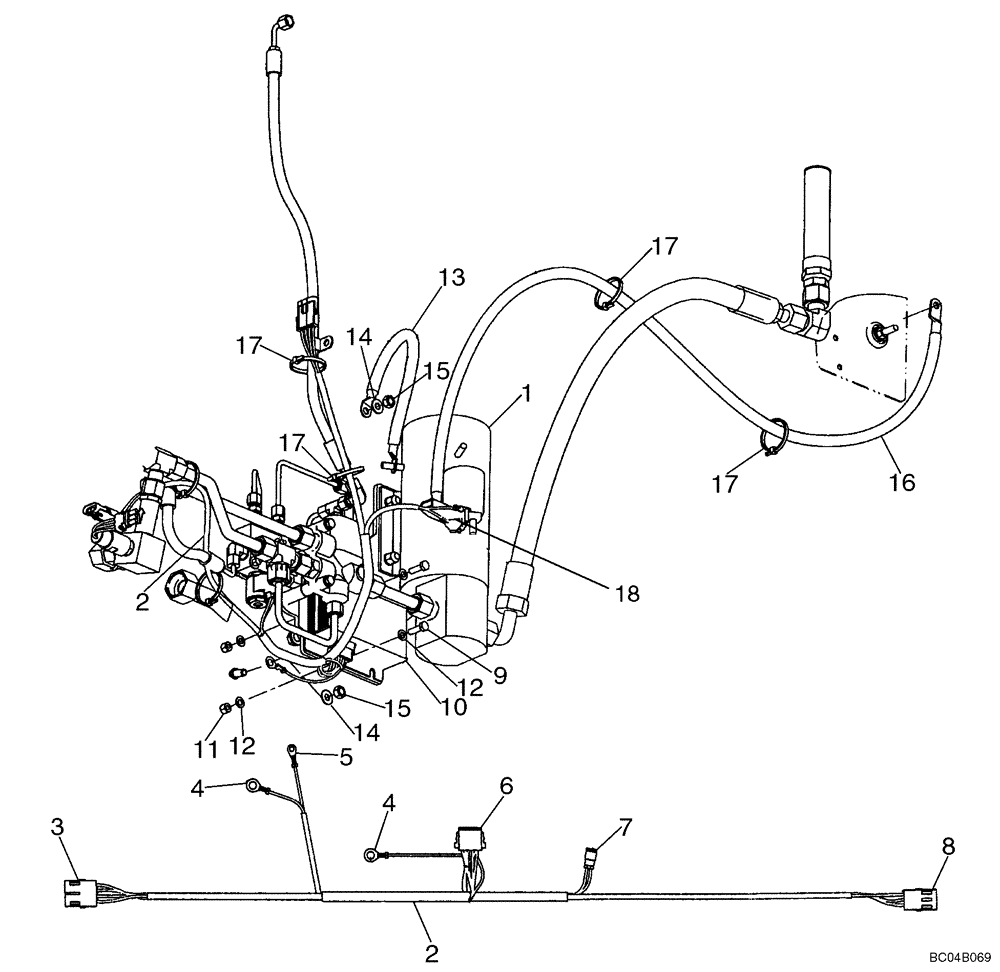

Запчасти Case 721D (04-16) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

1

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1; See Figure 05-09

1шт.

2

8500605

HARNESS

Auxiliary Steering; Incl. 3 - 8

1шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

4

1964712C1

TERMINAL CONNECTOR

2шт.

5

1964704C1

TERMINAL CONNECTOR

1шт.

6

225389C1

CONNECTOR, ELEC

CONNECTOR Secondary Steering Module

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

Secondary Steering Solenoid

1шт.

8

245485C1

ELEC CONNECTOR,Male, 3 Pin

Secondary Steering Pressure Switch

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

8603171

MODULE

Auxiliary Steering

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

L129707

NEG BATTERY CABLE

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

15

253347A1

NUT,Hex, M10 x 1.5

M10 - 1.5; Brass

2шт.

16

8501228

WIRE HARNESS

Auxiliary Steering

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

18

L126713

BOOT

Electrical

1шт.
