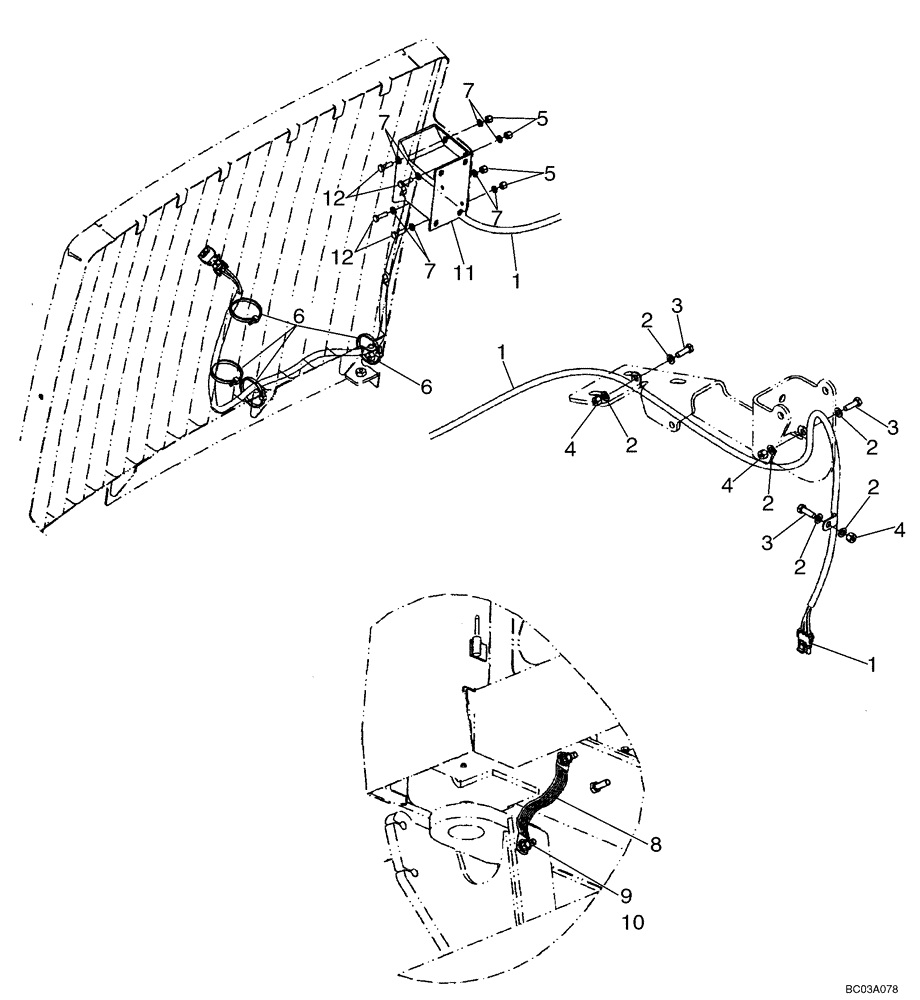

Запчасти Case 721D (04-15) - HARNESS - HOOD - IF USED (04) - ELECTRICAL SYSTEMS

1

8602806

WIRE HARNESS

Hood

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

L126051

GROUND STRAP

1шт.

9

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

11

D121972

ALARM

Backup

1шт.

12

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.
