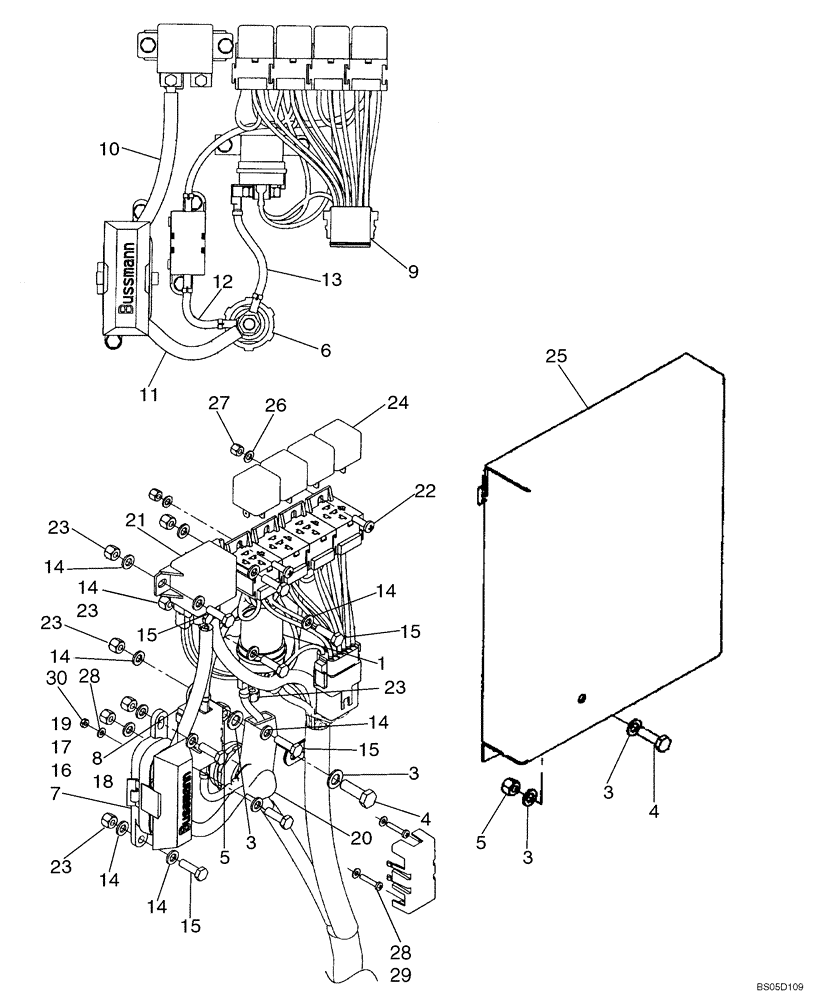

Запчасти Case 721D (04-14B) - HARNESS, REAR - RELAY PANEL WITH BOSCH OR DENSO STARTER (04) - ELECTRICAL SYSTEMS

1

120398A1

RELAY

Starter

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

319055A1

JUNCTION BLOCK

Assy

1шт.

7

440038A1

JUNCTION BLOCK

Block; Fuse

1шт.

8

8500911

FUSE HOLDER

Midifuse; Replaced By 87404860

1шт.

8

87404860

FUSE HOLDER

Midifuse;

1шт.

9

8602731

WIRE HARNESS

Relay Box

1шт.

10

8602665

WIRE

Megafuse To Relay

1шт.

11

8602172

WIRE CONNECTOR

Junction Block To Relay

1шт.

12

8602173

WIRE CONNECTOR

Junction Block To Midifuse

1шт.

13

8602174

WIRE CONNECTOR,8mm, 10 - 6 mm2

Junction Block To Relay

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

15

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

8шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

8501314

FUSE

40 Amp

1шт.

19

8501311

FUSE,150A, Megaval

150 Amp

1шт.

20

L126713

BOOT

2шт.

21

1546485C1

RELAY,24V

Power

1шт.

22

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

23

832-10406

NUT,M6 x 1, Cl 8

10шт.

24

326845A1

RELAY,24V

4шт.

25

8602175

COVER

1шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

27

832-10405

NUT,M5 x .8, Cl 8

2шт.

28

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

29

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

6шт.

30

824-1403

NUT,M3, Cl 5

6шт.
