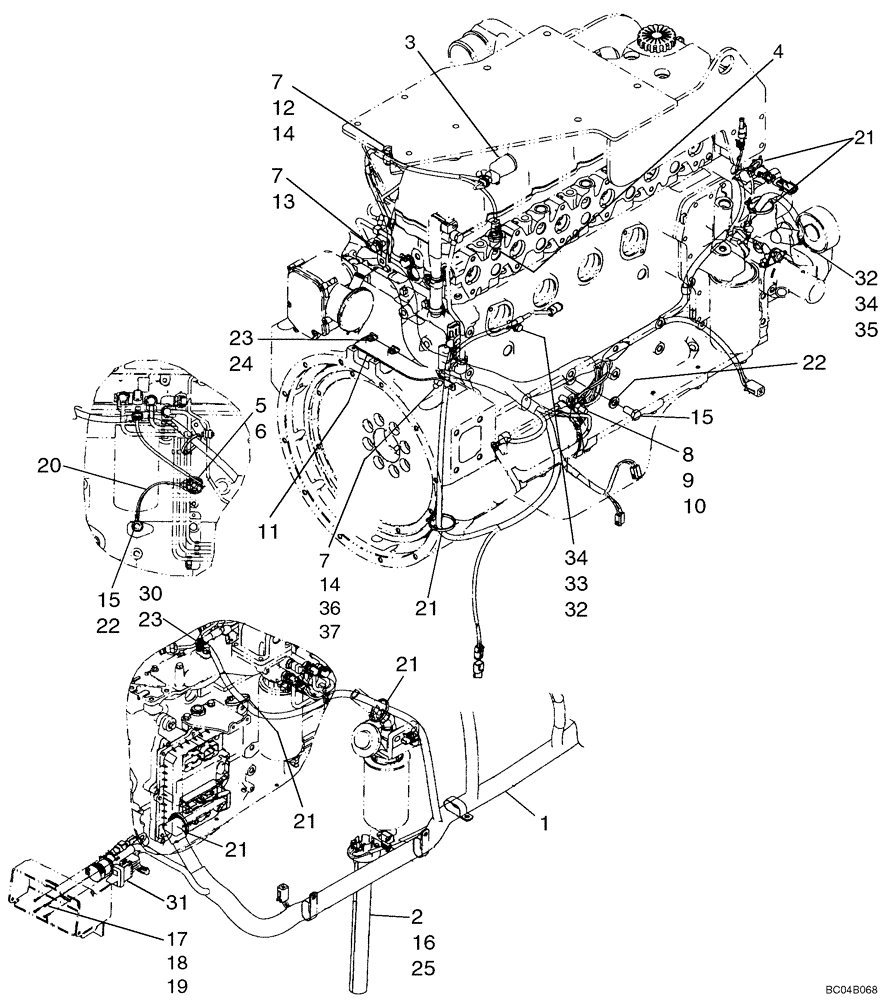

Запчасти Case 721D (04-13) - HARNESS - ENGINE - WITH BOSCH STARTER (04) - ELECTRICAL SYSTEMS

1

8605184

WIRE HARNESS

Engine; With Bosch Starter

1шт.

2

328870A1

SENDER UNIT

Fuel Level

1шт.

3

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

4

321446A1

SENSOR

Engine Coolant

1шт.

5

8500758

HYD CONNECTOR

1шт.

6

404224A1

SENDER UNIT

SENDER EOP

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

8

L127553

STUD

Brass

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

10

L127555

NUT,Hex, 3/8" - 16

3/8; Brass

1шт.

11

8501299

BRACKET

Harness

1шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

16

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

17

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

4шт.

18

893-11003

LOCK WASHER,Ext Tooth, M3

4шт.

19

824-1403

NUT,M3, Cl 5

4шт.

20

8501337

GROUND CABLE

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

25

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

30

832-10406

NUT,M6 x 1, Cl 8

1шт.

31

8602758

SWITCH

Hood Lift

1шт.

31

87350087

SWITCH

Hood Lift; Replaces 8602758

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

35

L126713

BOOT

Electrical

1шт.

36

L126936

SPACER

1шт.

37

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.
