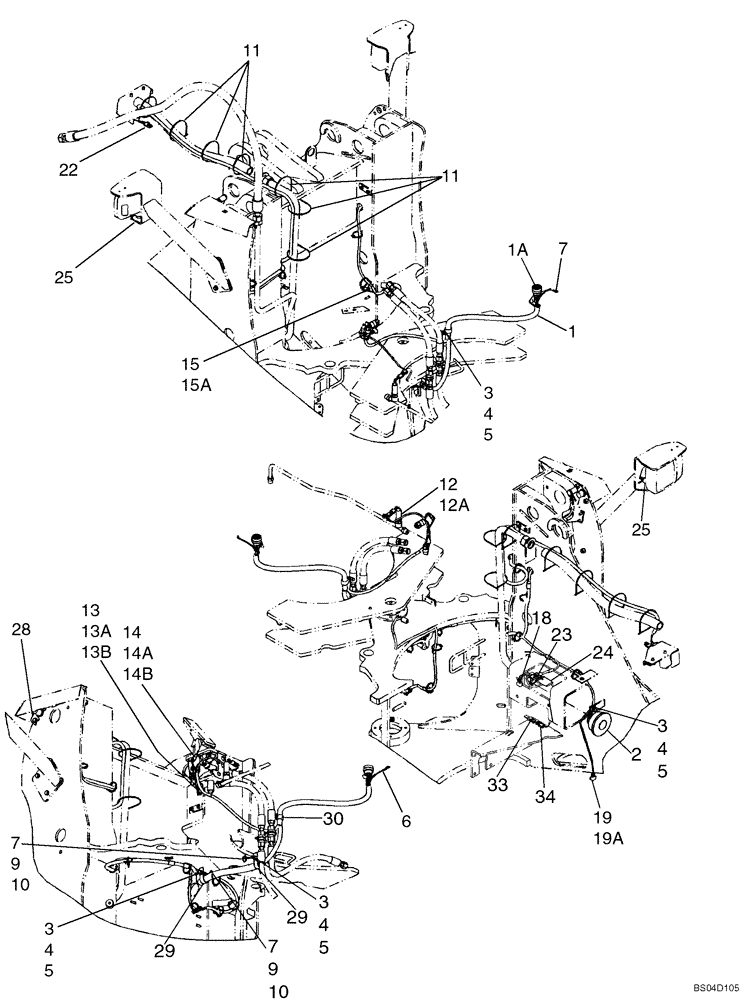

Запчасти Case 721D (04-05) - HARNESS, FRONT (04) - ELECTRICAL SYSTEMS

1

87443383

WIRE HARNESS

Front; Replaces 8602938

1шт.

1a

373358A1

CONNECTOR,ELECTRIC

Cab, Front

1шт.

2

251444A1

ASSEMBLY

Horn Assembly, 300 HZ

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 18 x 1,6 mm

8шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

Engine Harness

1шт.

7

1964718C1

TERMINAL CONNECTOR

Grounds

3шт.

9

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass; Grounds

2шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass; Grounds

2шт.

11

19-135

CABLE TIE

CABLE STRAP 15 in

7шт.

12

87549589

SWITCH

Brake Declutch; Replaces 377898A3

1шт.

12a

245482C1

ELEC CONNECTOR,2 Pin

Brake Declutch

1шт.

13

390431A2

SWITCH

Pressure; Brake Light; Replaced By 87307240

1шт.

13a

222136A1

ELEC CONNECTOR,Male, 2 Pin

Switch, Pressure; Brake Light

1шт.

13b

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

Switch, Pressure; Brake Light; No Longer Required For Use With Brake Light Pressure Switch 87307240

1шт.

13

87307240

PRESSURE SWITCH

Brake Light; Incl. O-Ring; Replaces 390431A2

1шт.

13

84177015

PRESSURE SWITCH

Brake Light; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

14

8605738

PRESSURE SWITCH

Warning; Brake

1шт.

14a

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

Warning; Brake

1шт.

14b

225316C1

ELEC CONNECTOR,Female, 2 Pin

Switch Pressure; Brake Warning

1шт.

15

245482C1

ELEC CONNECTOR,2 Pin

Pin Engage Option; If Used

1шт.

15a

245483C1

ELEC CONNECTOR,Male, 2 Pin

Plug; Pin Engage Option; If Not Used

1шт.

18

291718A1

ELEC CONNECTOR,Female, 2 Pin

Solenoid, Float

1шт.

19

291718A1

ELEC CONNECTOR,Female, 2 Pin

Ride Control; If Used

1шт.

19a

291717A1

ELEC CONNECTOR,Male, 2 Pin

Ride Control; Plugged Connector; If Not Used

1шт.

22

245485C1

ELEC CONNECTOR,Male, 3 Pin

Return To Dig

1шт.

23

245488C1

ELEC CONNECTOR,6 Pin

Diode; Ride Control - Float Solenoid

1шт.

24

A187813

DIODE

Ride Control - Float Solenoid

1шт.

25

225351C1

ELEC CONNECTOR,Female, 6 Pin

Lights; LH, RH

2шт.

28

245484C1

ELEC CONNECTOR,3 Pin

Height Control - Return To Travel

1шт.

29

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

(34.9 mm - ID)

2шт.

30

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

(30.2 mm ID)

1шт.

31

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Horn; Power; Ground

2шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

16шт.

33

245483C1

ELEC CONNECTOR,Male, 2 Pin

Jumper Harness; Rollback Pressure Switch; XT Models Only

1шт.

34

8602937

WIRE HARNESS

Jumper; Rollback Pressure Switch; XT Models Only

1шт.
