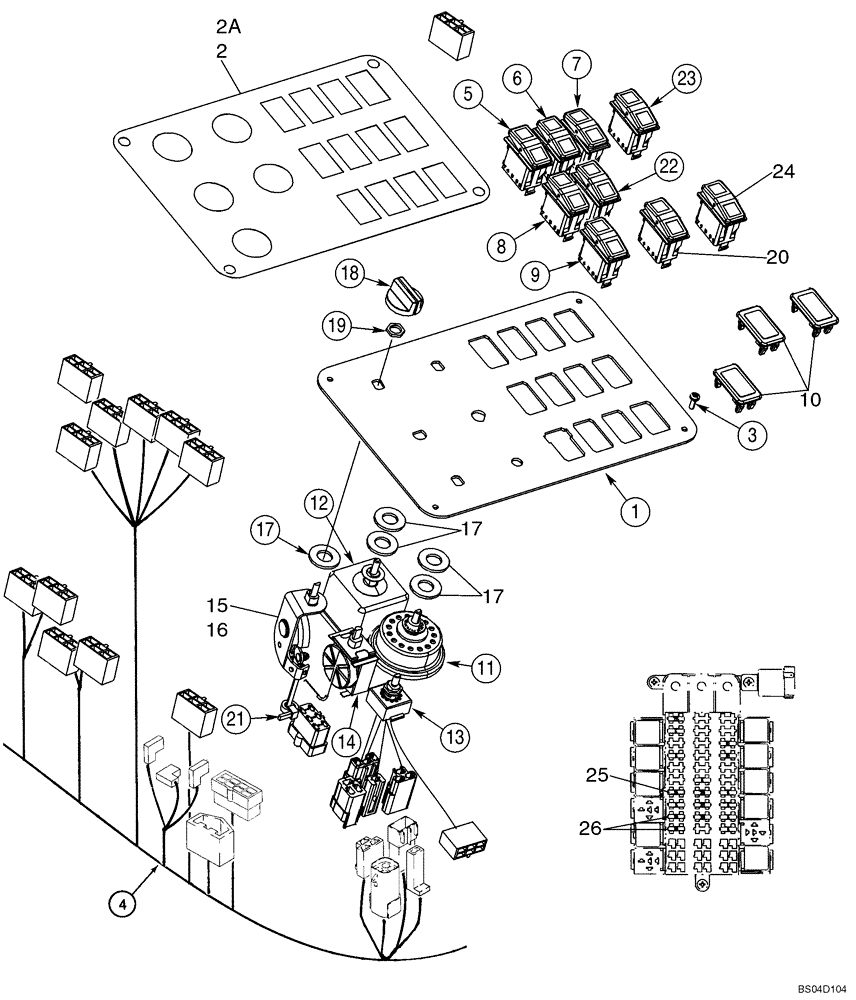

Запчасти Case 721D (04-03) - PANEL, CONTROL - CAB HEATER/HEATER AND AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

CAB WITH HEAT OR HEAT AND A/C

1шт.

1

197377A2

CONTROL PANEL

1шт.

2

283423A1

DECAL

Cab Switches, With Heat; See Figure 09-59; Item 6

1шт.

2a

283424A1

DECAL

Cab Switches; With Heat And A/C; See Figure 09-59; Item 5

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

4

REF

INSTRUCTION

HARNESS, MAIN CAB SEE FIG 04-09

1шт.

5

374421A4

SWITCH

Declutch

1шт.

6

374422A2

SWITCH

Detent

1шт.

7

374427A2

SWITCH

Return To Travel

1шт.

8

374431A2

SWITCH

Trans. Auto

1шт.

9

374429A2

WINDSHIELD WIPER SWI

Rear Wiper and Washer

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

4-6шт.

11

1994716C1

LIGHT SWITCH

Lamp; 5 Positions

1шт.

12

197952A1

SWITCH

Windshield Wiper Front

1шт.

13

92100C2

SWITCH

Blower Motor

1шт.

14

A187954

SWITCH

SWITCH - Thermostat; Cab with Heat and A/C

1шт.

250742A1

ELECTRIC CABLE

Incl. 15, 16

1шт.

15

1954651C2

CONTROL

1шт.

16

250739A1

CABLE,510mm L

1шт.

17

495-11053

WASHER,1/2", SAE

5шт.

18

1994720C1

KNOB

Control

5шт.

19

109311H

JAM NUT

7/16 NF

1шт.

20

400834A1

SWITCH

Transmission

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

22

374425A2

SWITCH

Ride Control; If Used

1шт.

23

382375A2

SWITCH

Fan Reversing; If Used

1шт.

24

374433A3

SWITCH

Disable Backup Alarm; Europe Only

1шт.

25

A149801

FUSE,Lt Blue, 15 Amp

15 AMP; Light Blue

1шт.

26

A149800

FUSE,10 Amp

10 AMP; Red

2шт.
