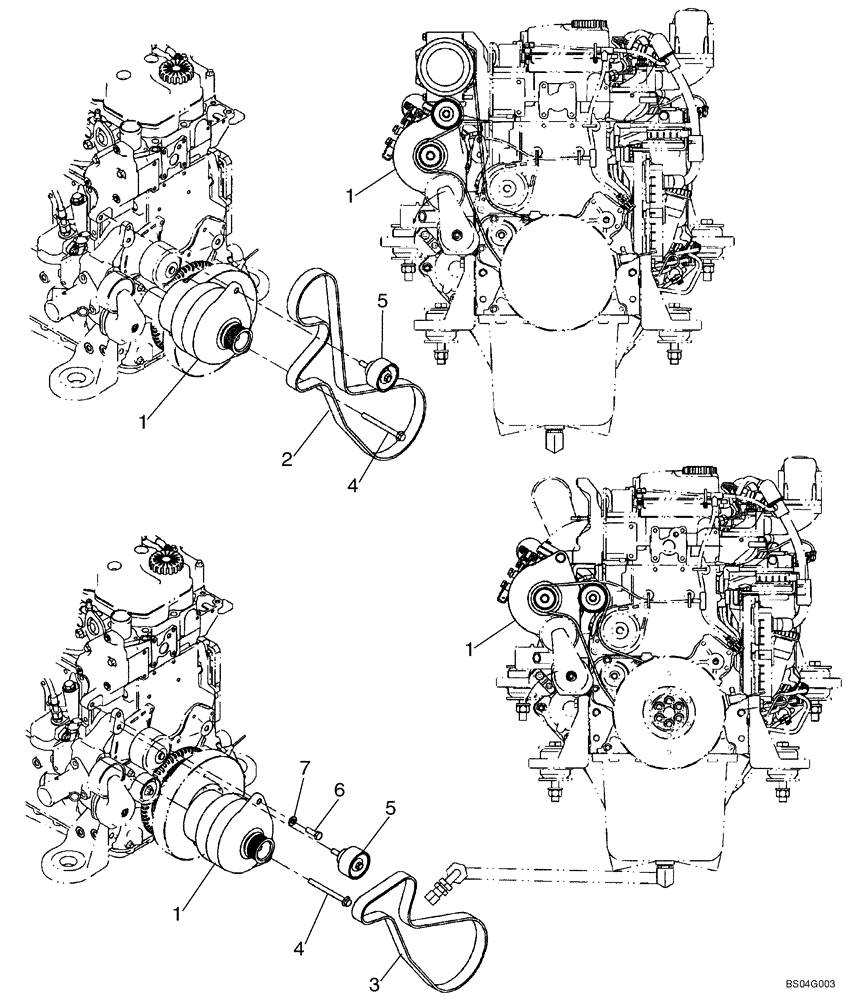

Запчасти Case 721D (04-01) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

4892318

ALTERNATOR,24V, 70A, W/ Pulley

- ASSY, See Figure 04-01A

1шт.

1

4892318R

REMAN-ALTERNATOR

24V, 70A

1шт.

1

4892318C

CORE-ALTERNATOR

Return number

1шт.

2

8602679

BELT,1688.00 mm L

Used with Air Conditioning

1шт.

3

FAR8602680

BELT,1230.00 mm L, 8 Ribs

Used Without Air Conditioning

1шт.

4

4899122

BOLT,Flng, M10 x 1.5 x 110mm

Replaced By 854-10110

1шт.

4

854-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 10.9

Replaces 4899122

1шт.

5

REF

INSTRUCTION

IDLER SUPPLIED WITH ENGINE See Fig. 02-23

1шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
