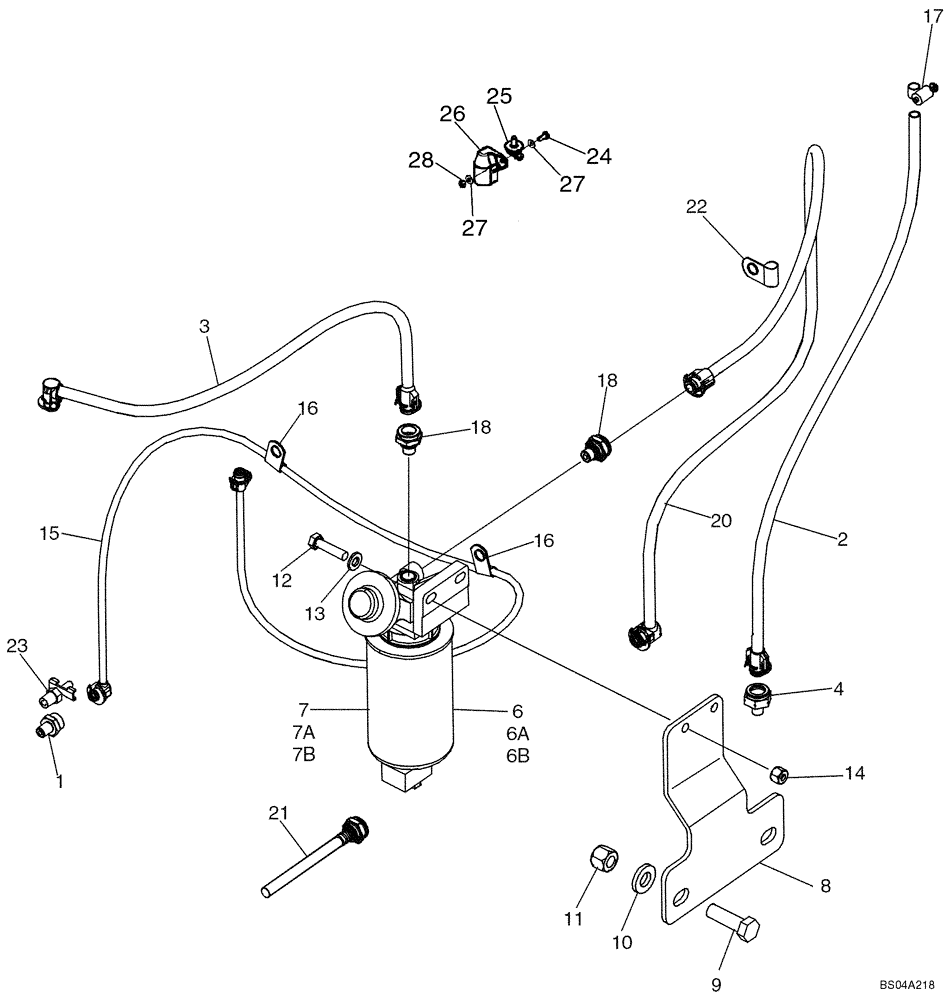

Запчасти Case 721D (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

86601756

HYD CONNECTOR

246NG8 - 1/4 NPTF

1шт.

2

8602556

VENTILATION PIPE,12.50 mm OD x 800.00 mm L

800 mm (31 1/2 in.); Breather

1шт.

2

87445405

O-RING

Not Shown

1шт.

3

8602539

FUEL TUBE,10mm ID x 650mm L

650 mm (25 5/8 in.);, Serial Range: Prefilter-Engine

1шт.

3

87445405

O-RING

Not Shown

2шт.

4

8602543

FITTING

246 NG12 to 1/4 NPTF

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

6

2852837

HEAD

Fuel Pre-Filter and Water Separator; Used With 8500044 (504067837) Iveco Engine

1шт.

6a

87803182

FUEL FILTER

Used with 504030790 Head

1шт.

99483892

HEATER

Used With 504030790 Head

1шт.

6b

2830419

SENSOR

Used With 504030790 Head

1шт.

6

87435522

FILTER ASSY

Water Separator w/ Heater; If Used; Incl. 6A, 6B; Used With 87433689 CDC Engine

1шт.

6a

87435524

FUEL FILTER

Cartridge

1шт.

87803182

FUEL FILTER

If Used

1шт.

6b

87438159

SENSOR

Water in Fuel w/ Heater

1шт.

7

87435523

FILTER ASSY

Water Separator w/o Heater; If Used; Incl. 7A, 7B; Used With 87433689 CDC Engine

1шт.

7a

87435524

FUEL FILTER

Cartridge

1шт.

87803182

FUEL FILTER

If Used

1шт.

7b

87438159

SENSOR

Water in Fuel w/o Heater

1шт.

8

87438588

BRACKET

Prefilter; Replaces 8501284

1шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

10

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

11

832-10416

NUT,M16 x 2, Cl 8

2шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

8602540

FLEXIBLE HOSE

1725 mm (68 in.); Engine To Tank

1шт.

15

87445405

O-RING

Not Shown

2шт.

16

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

17

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

18

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246 NG12 to M14 x 1.5; Incl. 19

2шт.

19

NSS

NOT SOLD SEPARAT

Copper Washer; Replaces O-Ring 637-63113

1шт.

20

8602538

PLASTIC-RUBBER TUBE,12.50 mm OD x 1300, 25 mm L

1350 mm (53 5/32); Tank To Prefilter

1шт.

20

87445405

O-RING

Not Shown

2шт.

21

8602537

TUBE,12mm OD x 171mm L

Tank Draw; 171mm (6 3/4 in.)

1шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

23

217-92

COCK

1шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

25

T103750

BREATHER

1шт.

26

186814A1

CAP

1шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
