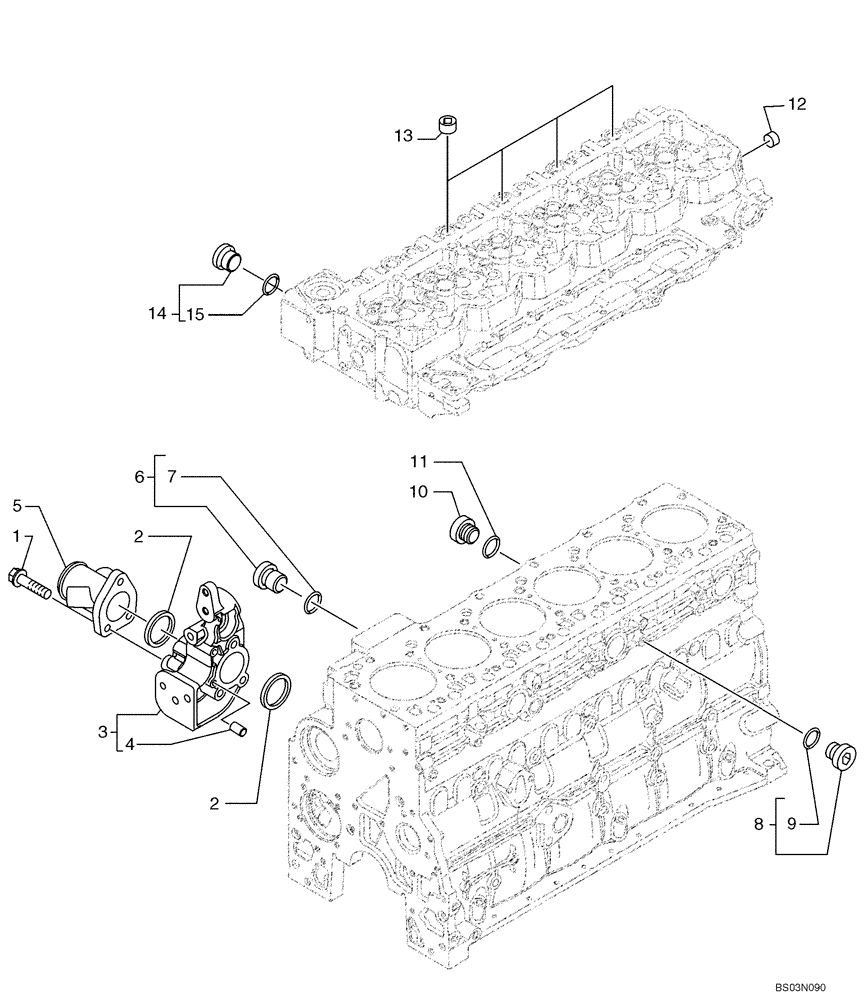

Запчасти Case 721D (02-41) - COOLING SYSTEM - ENGINE (02) - ENGINE

2852803

SCREW

M10 x 45; Not Illustrated; If Used

3шт.

2852480

SUPPORT

Compressor; Not Illustrated; If Used

1шт.

2852481

DOWEL,8.5mm ID

Not Illustrated; If Used

2шт.

1

2852325

SCREW

M10X80

3шт.

2

4895121

GASKET

2шт.

3

2852392

SUPPORT

Assy

1шт.

4

4895576

DOWEL

2шт.

5

2852468

TUBE

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy; If Used

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2852496

PLUG,M18 x 1.5

2шт.

11

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

12

4895079

PIPE PLUG,3/4"-14

2шт.

13

4895078

PIPE PLUG,1/2"-14

If Used

4шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

- Assy, If Used

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

If Used

1шт.
