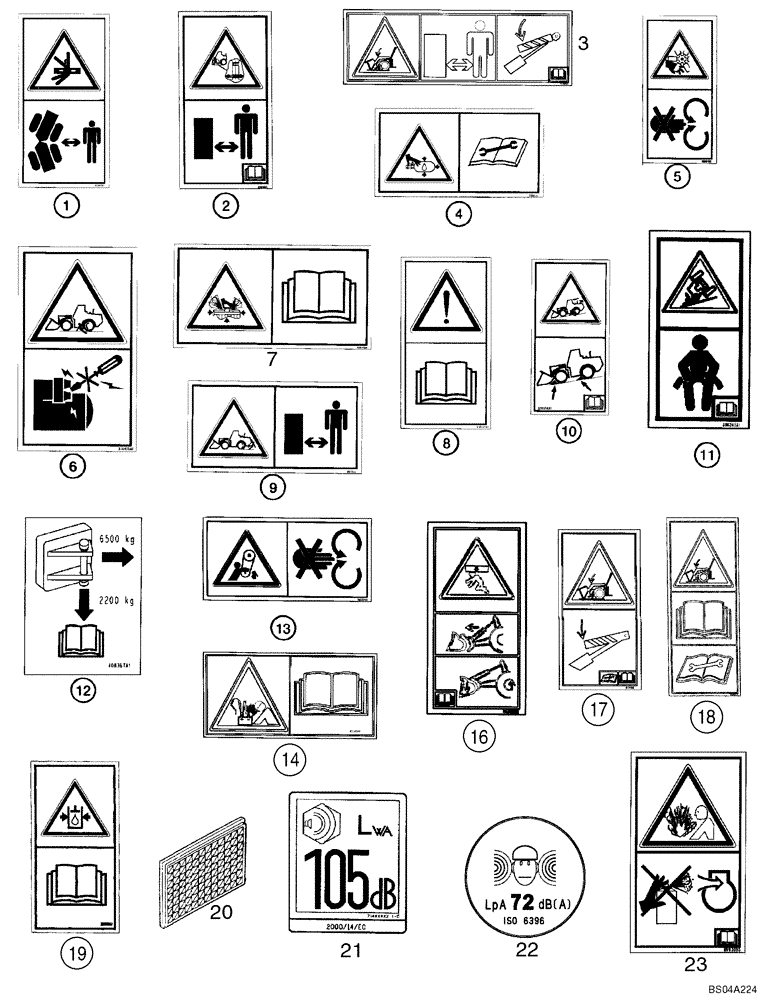

Запчасти Case 721D (09-58) - DECALS - EUROPE (09) - CHASSIS

1

323695A1

DECAL

Warning; Crush Hazard

2шт.

2

329048A1

DECAL

Warning; Crush Hazard

1шт.

3

412426A1

DECAL

Warning; Crush Hazard

1шт.

4

328903A1

DECAL

Warning; Pressurized System Hazard

2шт.

5

332511A1

DECAL

Warning; Fan

3шт.

6

334455A1

DECAL

Danger; Starting In Gear

1шт.

7

329045A1

CAUTION DECAL

Hot Liquid Hazard

1шт.

8

256147A1

DECAL

Read The Operator's Manual

1шт.

9

328753A1

DECAL

Warning; Runover Hazard

1шт.

10

329050A1

DECAL

Caution; Block Wheels

1шт.

11

386241A1

WARNING DECAL

Warning; Do No Jump

2шт.

12

408367A1

DECAL

Hitch Weight

1шт.

13

388113A1

DECAL

Belt Entanglement

1шт.

14

412476A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

364917A1

DECAL

Check Attachment

1шт.

17

407741A1

DECAL

Lift Arm Support

1шт.

18

87450424

DECAL

Danger; Crush Hazard; Replacing 412481A!

1шт.

18

87453136

DECAL

Danger; Crush Hazard; Replacing 87450424

1шт.

19

333269A1

DECAL

Warning; Pressurized System Hazard

2шт.

20

123894A1

REFLECTOR

Amber

6шт.

21

71477097

DECAL,105dB, 90mm x 110mm

Sound Level; 105db; Replaces 447202A1

1шт.

22

87305274

DECAL

Sound Interior; Replaces 435041A1

1шт.

23

8603095

WARNING DECAL

Warning Ether Explosion

3шт.

REF

INSTRUCTION

FOLLOWING DECALS ARE NOT ILLUSTRATED

1шт.

87358697

TAG

DECAL Do Not Operate

1шт.

374727A1

DECAL

Road Transport Warning (Italian)

1шт.

321-6638

DECAL

Attention; Steering ( German/Austrian)

1шт.

1532083C1

DECAL

Speed Sign (German/Austrian)

3шт.

129482A1

DECAL

Lube Marker; Red Dot; (German)

45шт.
