Запчасти Case 721D (09-47) - AIR CONDITIONING (09) - CHASSIS

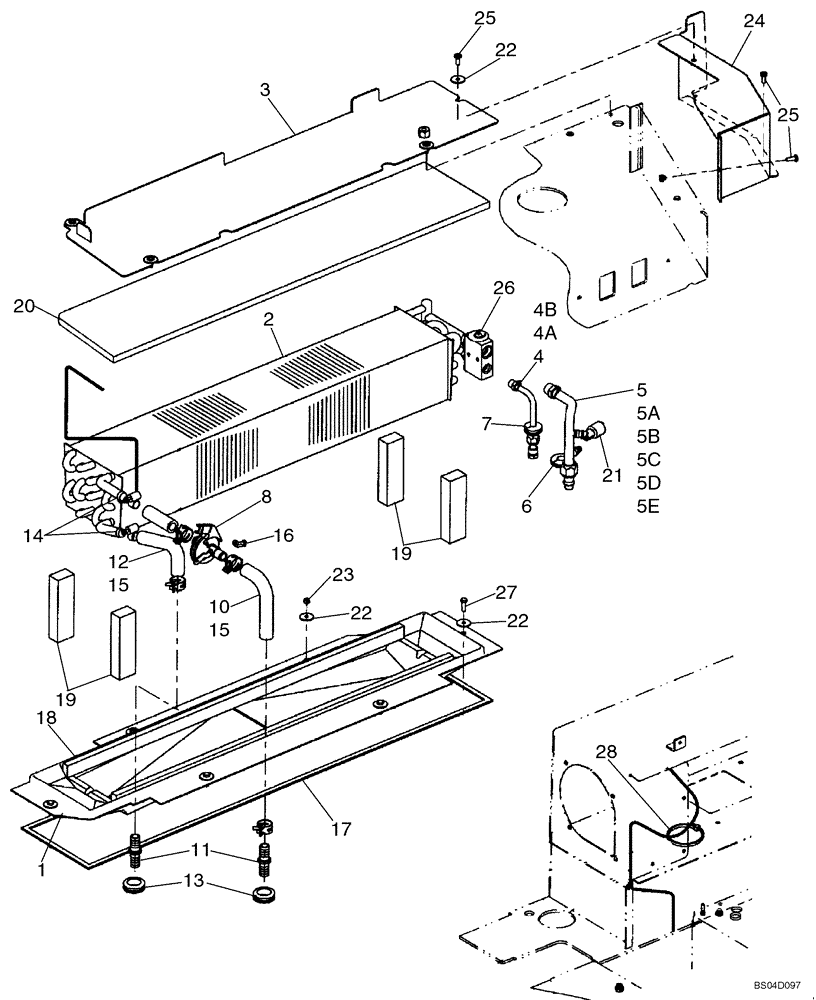

Схема запчастей Case 721D - (09-47) - AIR CONDITIONING (09) - CHASSIS
24
22
1
18
6
14
4
23
5c
28
25
3
26
5e
16
27
13
20
19
7
5
5a
19
15
8
22
2
4b
5d
10
12
5b
4a
11
15
25
17
22
21

Артикул

Название

Примечание

Количество

1

1339577C3

PAN

Condensation

1шт.

2

233424A1

HEATER

Core; Heating And Air Conditioning

1шт.

3

197696A2

COVER

1шт.

4

104400A1

TUBE,0.375" OD, 115, 53 mm Length

Lower; Incl. 4A, 4B

1шт.

4a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

4b

NSS

NOT SOLD SEPARAT

Included with 4

1шт.

5

104399A1

TUBE

Upper; Incl. 5A-5E

1шт.

5a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

5b

122553A1

CAP

Low Side Service Port

1шт.

5c

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

5d

1255856C1

PLUG

1шт.

5e

1250594C1

CORE

Valve HVAC Core

2шт.

6

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

7

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

8

1331087C1

HEATER VALVE

1шт.

9

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return Return; Cut from 97252CX

1шт.

10

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

Return, Core to Valve

1шт.

11

1301342C1

FITTING

2шт.

12

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

Heater Supply Core To Floor

1шт.

13

L116914

GROMMET

Heater Hoses

2шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

15

1954736C1

HOSE CLAMP,#24

2шт.

16

1954626C1

SPRING CLIP

Heater Cable Retaining

1шт.

17

1977907C1

SEAL

1шт.

18

98357C1

SEALING STRIP

2шт.

19

1340075C2

SEAL

130 mm (5-1/8 in); Core End; Cut From 1999750C1

4шт.

20

239943A1

COVER

1шт.

21

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

22

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

10шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

24

184680A2

COVER

1шт.

25

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

26

87033212

VALVE

1шт.

27

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

Выбрано товаров: 35
