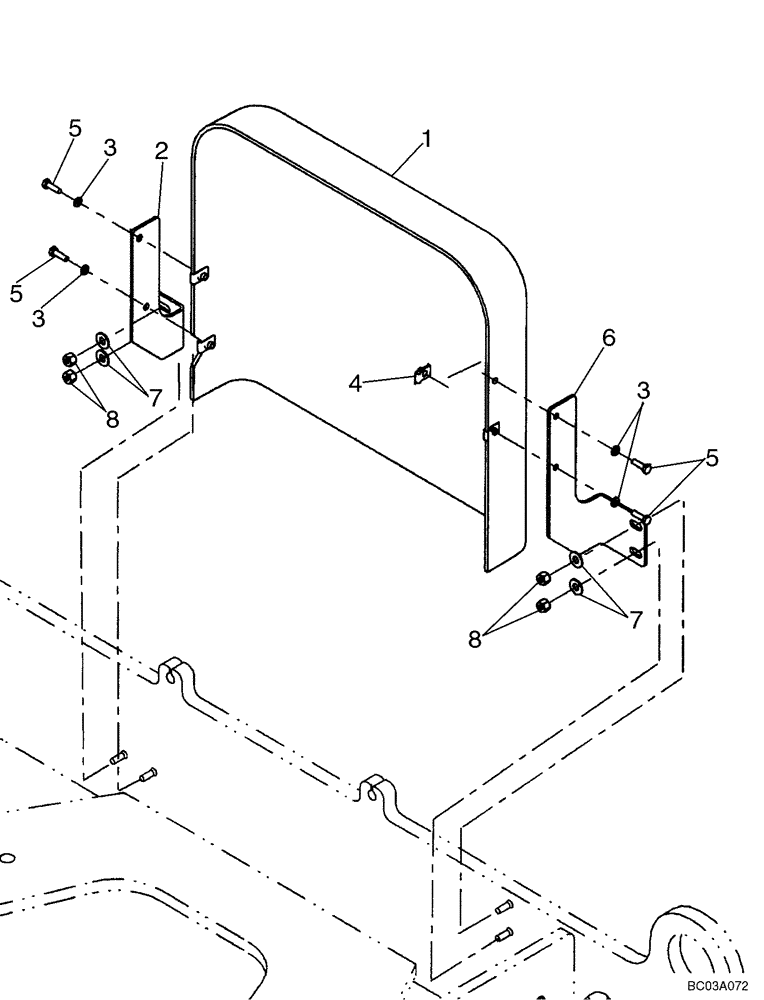

Запчасти Case 721D (09-46) - COVERS - DRIVE BELT (WITHOUT AIR CONDITIONING) (09) - CHASSIS

REF

INSTRUCTION

WITHOUT AIR CONDITIONING

1шт.

1

8501024

GUARD

1шт.

2

8602882

BRACKET

Engine Guard Mounting; Right; Replaces 8605375

1шт.

3

892-1006

LOCK WASHER,M6

4шт.

4

833-40306

SPRING NUT,M6, U

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

8602884

PLATE

Engine Guard Mounting; Left

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
