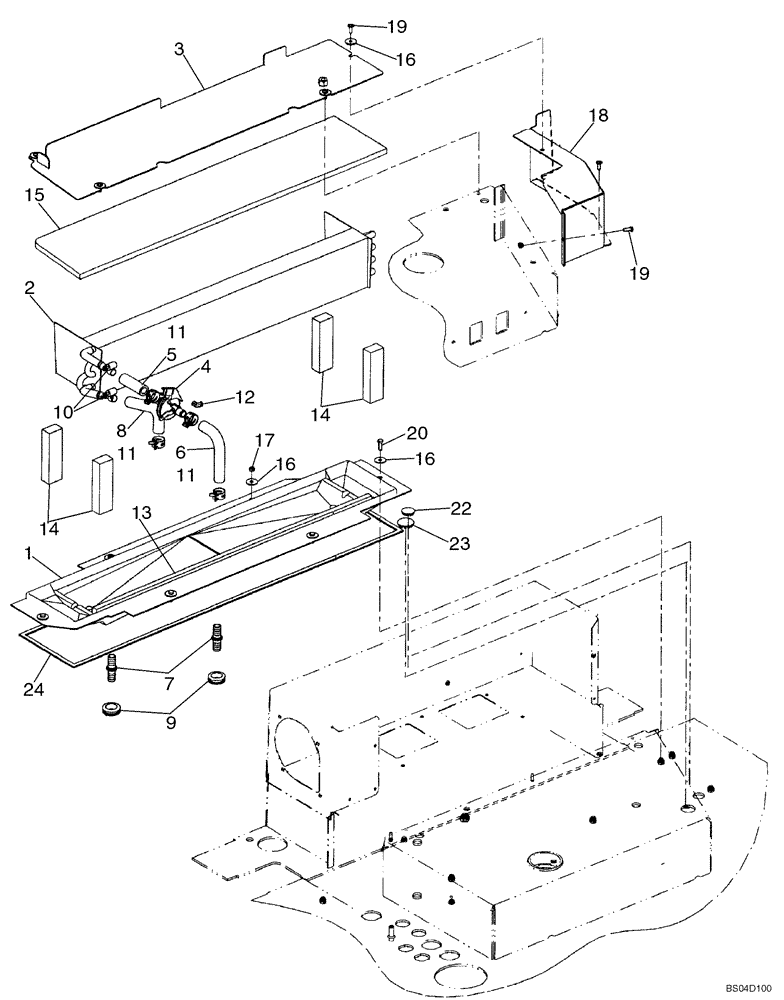

Запчасти Case 721D (09-44) - HEATER CORE MOUNTING (09) - CHASSIS

1

1339577C3

PAN

Condensation

1шт.

2

234325A1

HEATER

Models with Heater Only; Not Shown

1шт.

3

197696A2

COVER

Core

1шт.

4

1331087C1

HEATER VALVE

1шт.

5

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return Return; Cut from 97252CX

1шт.

6

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

Return, Core to Valve

1шт.

7

1301342C1

FITTING

2шт.

8

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

Heater Supply Core to Floor

1шт.

9

L116914

GROMMET

Heater Hoses

2шт.

10

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

11

1954736C1

HOSE CLAMP,#24

4шт.

12

1954626C1

SPRING CLIP

Heater Cable Retaining

1шт.

13

98357C1

SEALING STRIP

2шт.

14

1340075C2

SEAL

130 mm (5-1/8 in); Core End; Cut from 1999750C1

4шт.

15

239943A1

COVER

Core; Upper

1шт.

16

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

10шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

18

184680A2

COVER

Expansion Valve

1шт.

19

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

20

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

21

353-404

PLUG,Dome, .500" hole, Nylon

If Used; Not Illustrated

2шт.

22

205-105

HOLE PLUG BUTTON,1"

If Used

1шт.

23

205-123

HOLE PLUG BUTTON,1 1/4"

1шт.

24

1977907C1

SEAL

2213 mm (87-1/8 in); Flow Under Condensation Tray; Cut From 187874C2

1шт.
