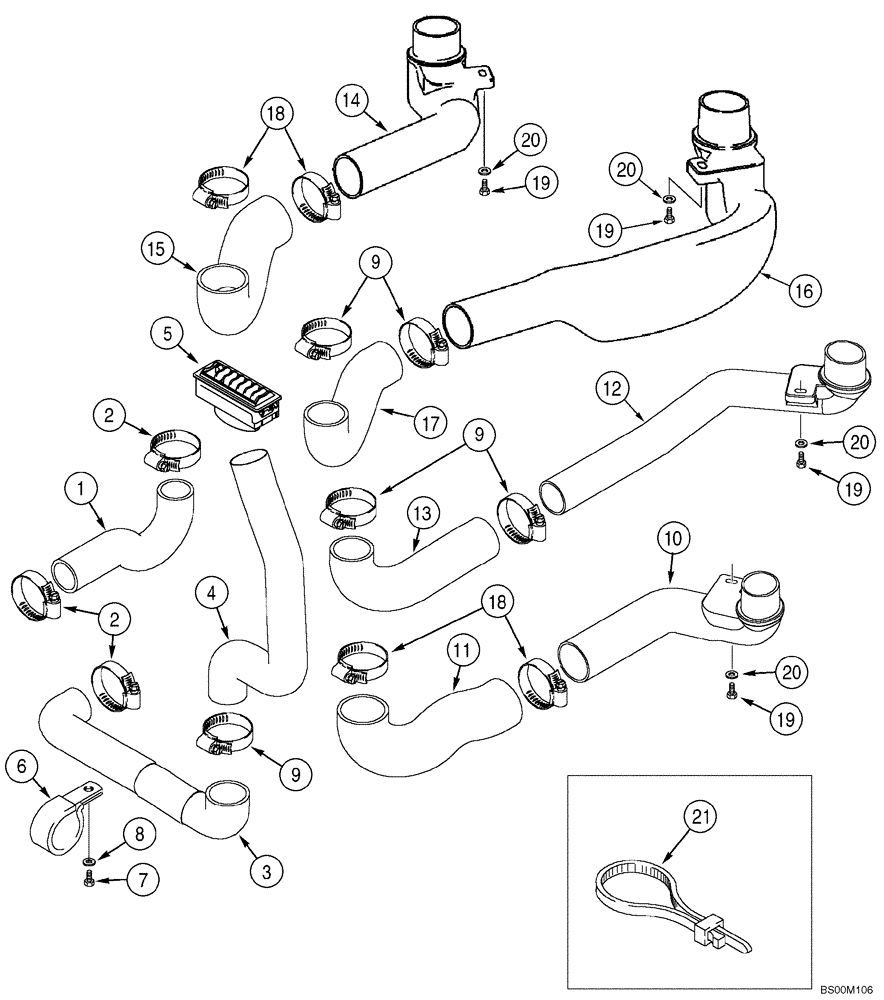

Запчасти Case 721D (09-43) - CAB - HEATER AND AIR CONDITIONING DUCTS (09) - CHASSIS

1

275648A1

AIR DUCT

Center, Rear; At Floor

1шт.

2

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

3шт.

3

275646A1

AIR DUCT

RH, Rear; Lower

1шт.

4

275655A1

AIR DUCT

RH, Rear; Upper

1шт.

5

399229A1

DIFFUSER

Rear Window

1шт.

6

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

214-1444

HOSE CLAMP,58.6mm - 82.5mm

5шт.

10

257880A1

AIR DUCT

Front Outer; RH

1шт.

11

226561A1

AIR DUCT

Front Outer; RH; At Floor

1шт.

12

257879A1

AIR DUCT

Front Inner; RH

1шт.

13

275494A1

AIR DUCT

Front Inner; RH; At Floor

1шт.

14

383688A1

AIR DUCT

Front Outer; LH

1шт.

15

226563A1

AIR DUCT

Front Outer; LH; At Floor

1шт.

16

383689A1

AIR DUCT

Front Inner; LH

1шт.

17

383687A2

AIR DUCT

Front Inner; LH; At Floor

1шт.

18

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

4шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.
