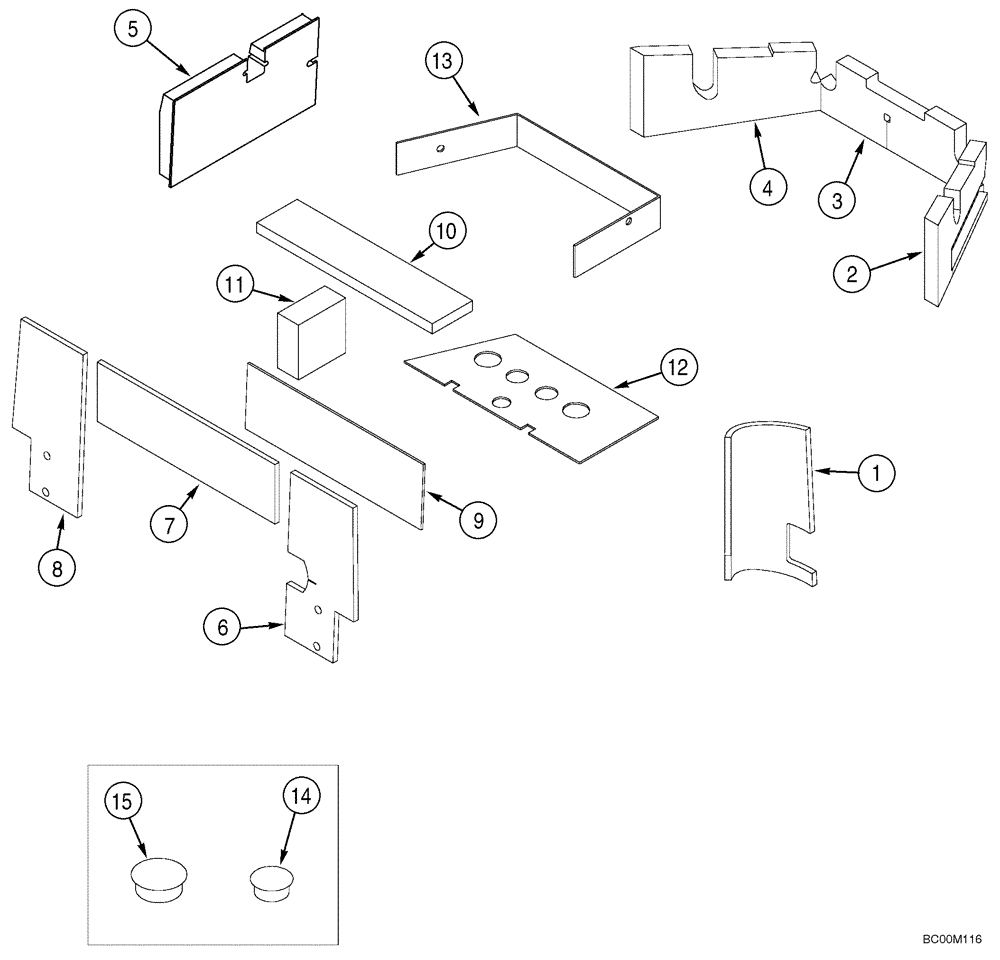

Запчасти Case 721D (09-35) - CAB - INSULATION (09) - CHASSIS

REF

INSTRUCTION

MODELS WITH AIR CONDITIONING

1шт.

1

400755A1

FOAM INSULATION

Tower

1шт.

2

399196A1

FOAM INSULATION

Cowl, RH

1шт.

3

399197A1

FOAM INSULATION

Cowl, Center

1шт.

4

399198A1

FOAM INSULATION

Cowl, LH

1шт.

5

399199A1

FOAM INSULATION

Door Bottom

1шт.

6

234147A2

FOAM INSULATION

Rear Panel; RH

1шт.

7

234148A1

FOAM INSULATION

Rear Panel; Center

1шт.

8

234149A2

FOAM INSULATION

Rear Panel; LH

1шт.

9

257368A1

FOAM INSULATION

Air Box; Rear

1шт.

10

257367A1

FOAM INSULATION

Air Box; Top

1шт.

11

257366A1

FOAM INSULATION

Air Box; LH

1шт.

12

280692A2

FOAM INSULATION

Seal Mount; Bottom

1шт.

13

280694A1

FOAM INSULATION

Seal Mount; Side

1шт.

14

353-408

PLUG,Dome, .750" hole, Nylon

5шт.

15

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

16

217-476

DRAIN PLUG,Sq Soc, 1" - 11-1/2, NTPF

Not Illustrated; See Figure 09-30; Item 24

1шт.
