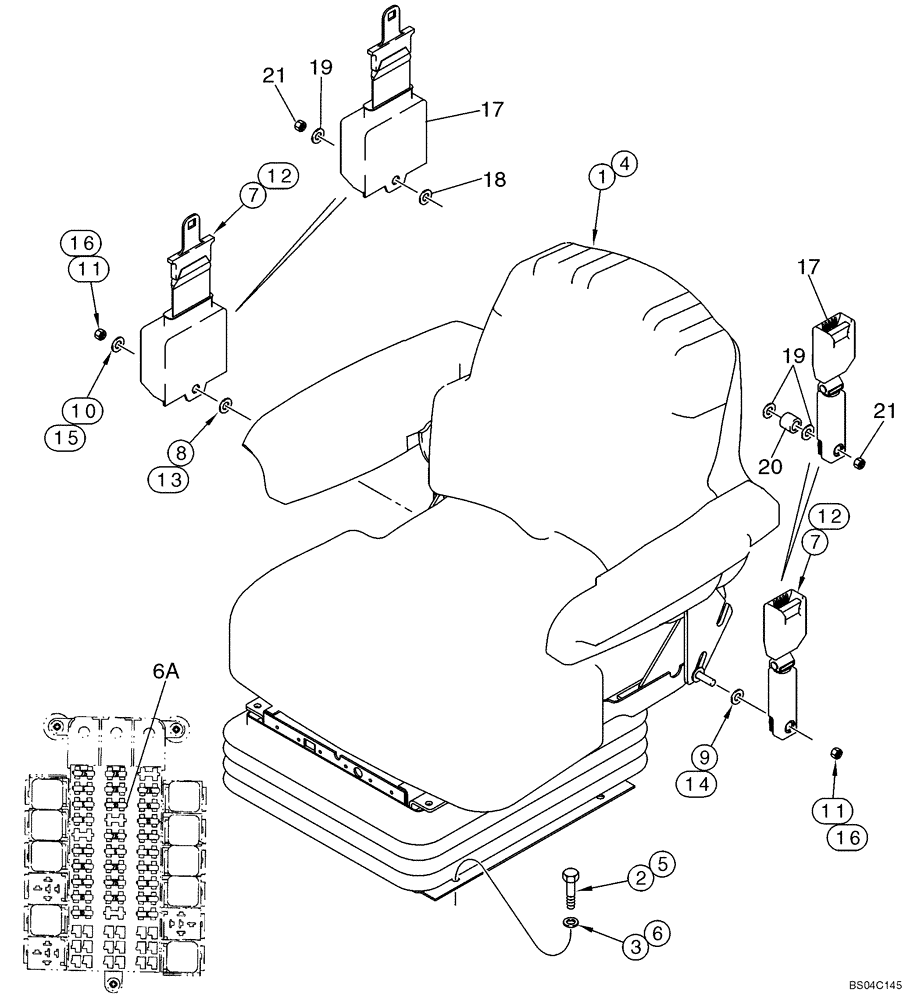

Запчасти Case 721D (09-25) - SEAT - MOUNTING/SEAT BELTS (09) - CHASSIS

REF

INSTRUCTION

MECHANICAL SUSPENSION SEAT

1шт.

1

399261A1

DRIVER SEAT

Vinyl; Mechanical Suspension; Used with 3 inch wide Seat Belt; North America Only; See Figure 09-26, 09-27

1шт.

1

399257A1

DRIVER SEAT

Cloth; Mechanical Suspension; See Figure 09-26, 09-27

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

REF

INSTRUCTION

AIR SUSPENSION SEAT

1шт.

4

399259A1

DRIVER SEAT

Cloth; Air Suspension; See Figure 09-28, 09-29

1шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6a

A149800

FUSE,10 Amp

10 amp; Air Suspension Seat Only

1шт.

REF

INSTRUCTION

SEAT BELT - NORTH AMERICA ONLY - 51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

7

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Includes 8, 9, See Ref 17 for 2" Seat Belt used on European Models

1шт.

8

NSS

NOT SOLD SEPARAT

Washer; 24.4 x 11.4 x 2.0

1шт.

9

NSS

NOT SOLD SEPARAT

Washer; 30.2 x 15.5 x 2.8

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

REF

INSTRUCTION

SEAT BELT - NORTH AMERICA ONLY - 76 mm (3 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

12

249117A1

SAFETY BELT ,76.20 mm W

If Equipped; Includes 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Washer; 24.4 x 11.4 x 2.0

1шт.

14

NSS

NOT SOLD SEPARAT

Washer; 30.2 x 15.5 x 2.8

1шт.

15

495-11047

WASHER,7/16", SAE

1шт.

16

231-2447

LOCK NUT,7/16"-14, GB

2шт.

REF

INSTRUCTION

SEAT BELT - EUROPE ONLY - 51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

17

345370A1

SAFETY BELT ,50.8mm W x 1219.2mm L

Incl. 18; Used In Europe Only; For 2" Seat Belt Used In North America, See Ref 7

1шт.

18

NSS

NOT SOLD SEPARAT

Washer; 24.4 x 11.4 x 2.0

1шт.

19

495-11047

WASHER,7/16", SAE

3шт.

20

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

Black

1шт.

21

231-2447

LOCK NUT,7/16"-14, GB

2шт.
