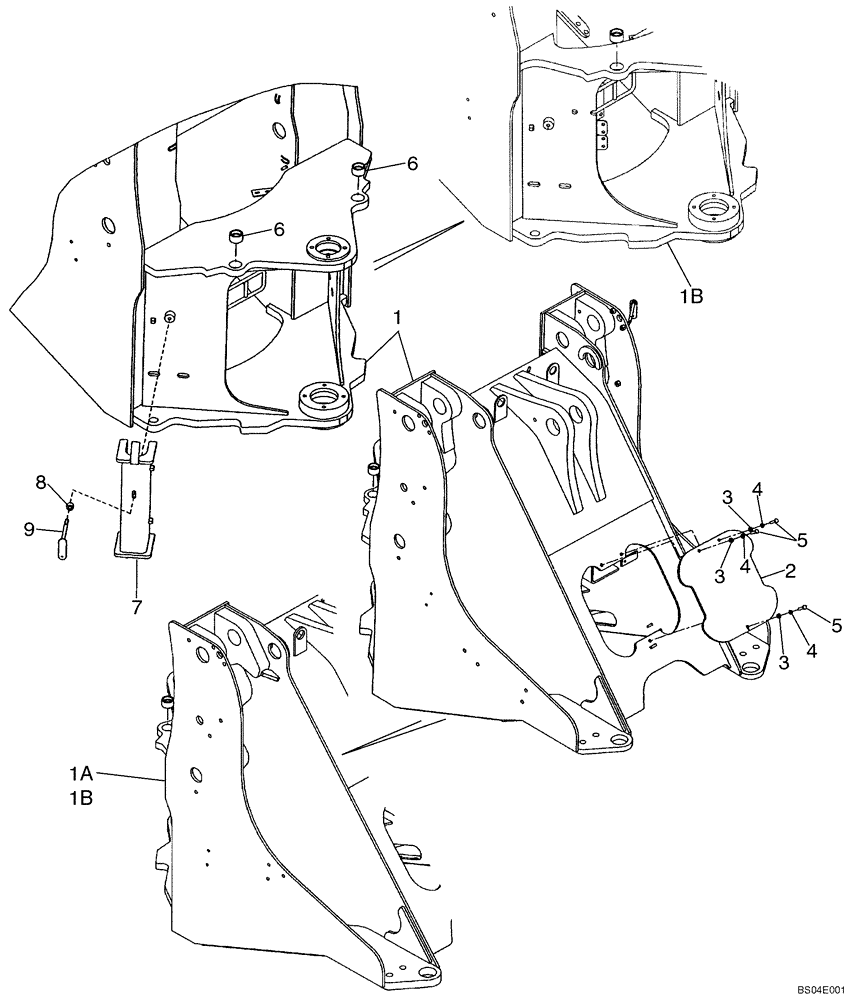

Запчасти Case 721D (09-23) - FRAME, FRONT- Z-BAR (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER AND XT FRONT CHASSIS

1шт.

1

431159A1

FRAME

Z-Bar Front Chassis; If Used; Different Mounting Hole Pattern For Fender Brackets; Incl. 2-9

1шт.

1a

87434909

FRAME

Z-Bar Front Chassis; If Used; Different Mounting Hole Pattern For Fender Brackets; Incl. 2-9

1шт.

1b

87450790

FRAME

CHASSIS; Z-Bar; If Used; Used With Ride Control Valve RSM2-16; See Figure 08-37C

1шт.

1c

87384139

FRAME

CHASSIS; Z-Bar; If Used; Mounting Ear For Cylinder Has Changed

1шт.

2

431168A1

COVER

Valve; Replaced by 8605898

1шт.

2

8605898

COVER

Valve; Replaces 431168A1

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

7

8500874

SUPPORT

Replaced by 87435589

1шт.

7

87435589

CHANNEL

Replaces 8500874

1шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing

1шт.

9

8500875

HANDLE

1шт.
