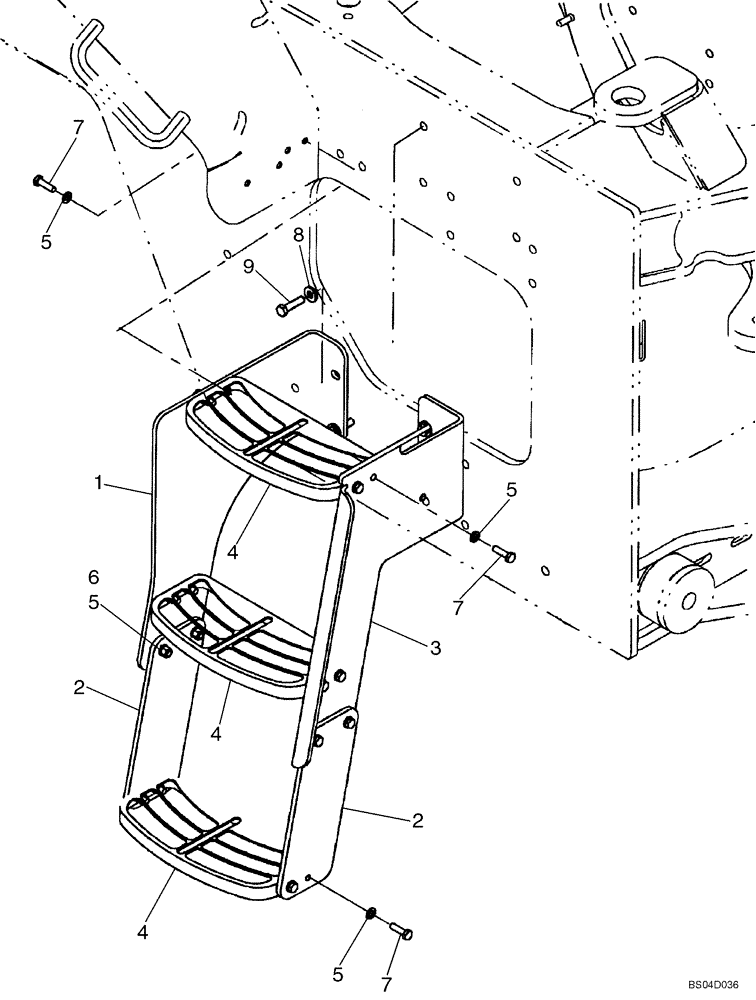

Запчасти Case 721D (09-22A) - FENDERS, REAR - STEPS - RIGHT - IF USED (09) - CHASSIS

REF

INSTRUCTION

RH SIDE; IF USED

1шт.

1

87434613

BRACKET

RH Step Support

1шт.

2

87434096

STRAP

Right

2шт.

3

87434612

BRACKET

RH Step Support

1шт.

4

87434472

STEP

Stamped Steel

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

M10 x 35; 10.95

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.
