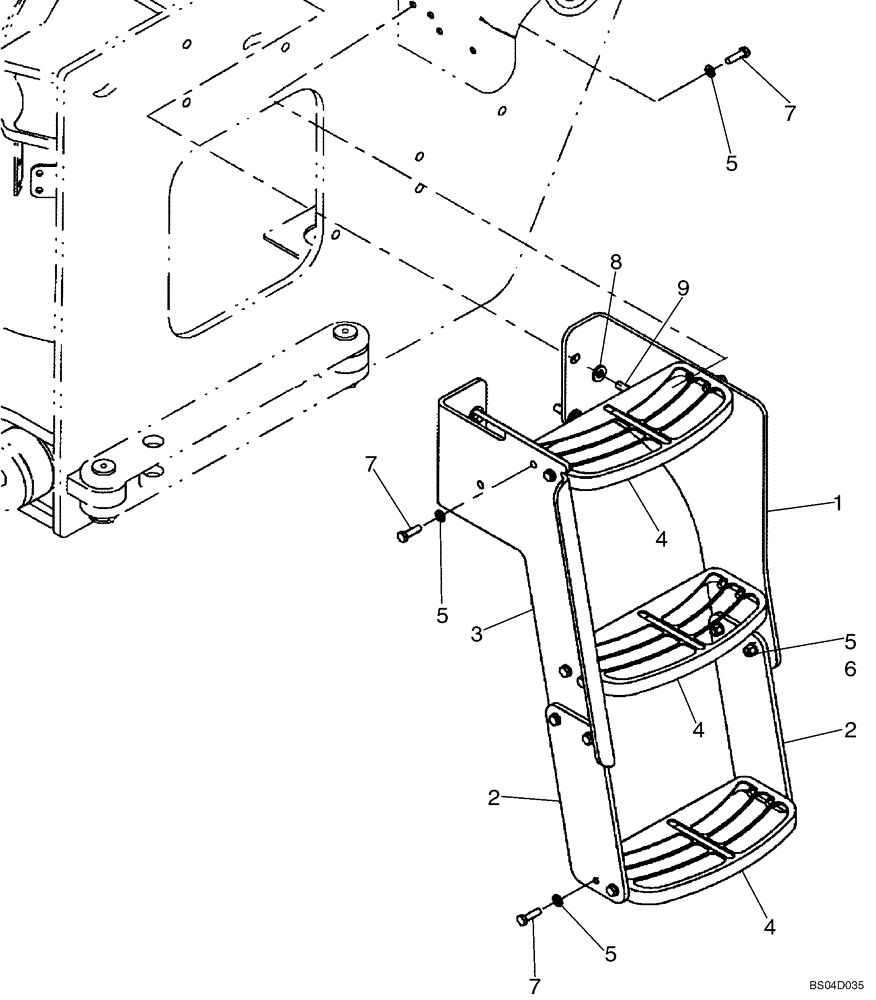

Запчасти Case 721D (09-21A) - FENDERS, REAR - STEPS - LEFT - IF USED (09) - CHASSIS

REF

INSTRUCTION

LEFT; IF USED

1шт.

1

87434607

BRACKET

LH Step Support

1шт.

2

87434096

STRAP

Lower

2шт.

3

87434606

BRACKET

LH Step Support

1шт.

4

87434472

STEP

Stamped Steel

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
