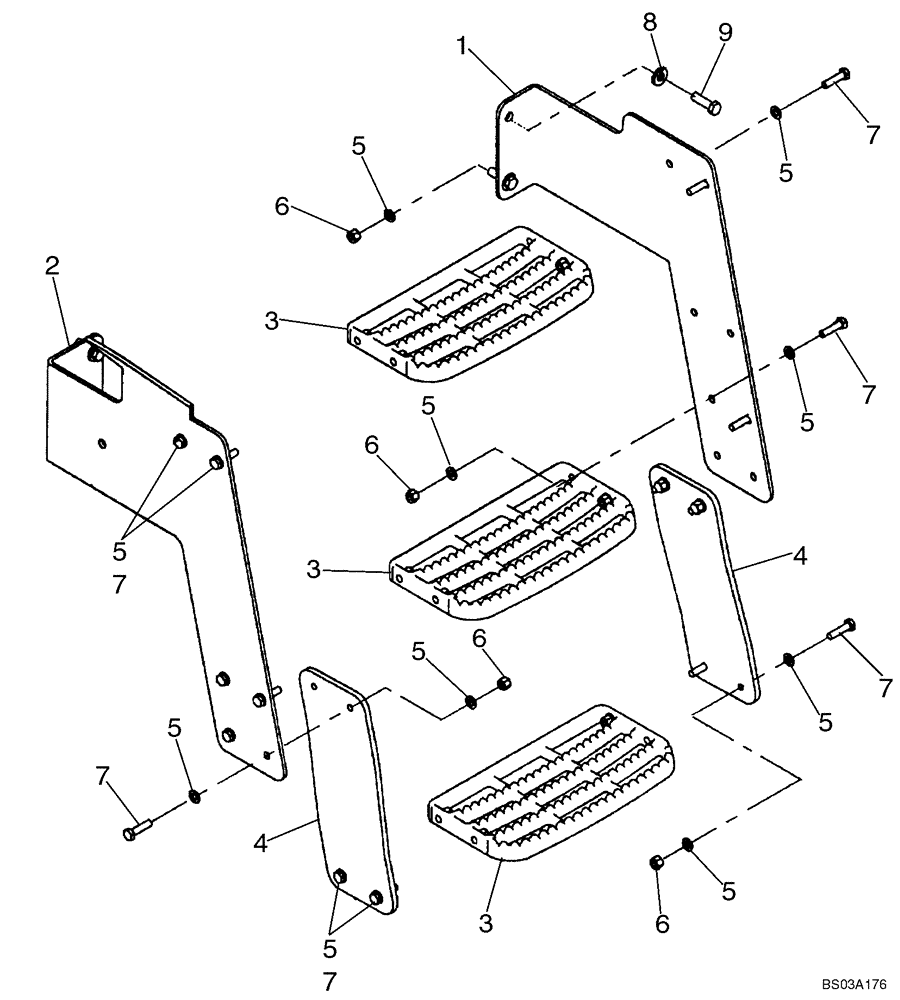

Запчасти Case 721D (09-21) - FENDERS, REAR - STEPS - LEFT (09) - CHASSIS

REF

INSTRUCTION

LEFT; IF USED; OTHERWISE SEE FIGURE 09-21A

1шт.

1

433657A1

BRACKET

LH Step Support

1шт.

2

433664A1

BRACKET

LH Step Support

1шт.

3

257375A1

STEP

Cast Aluminum

3шт.

4

384129A1

BRACKET

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
