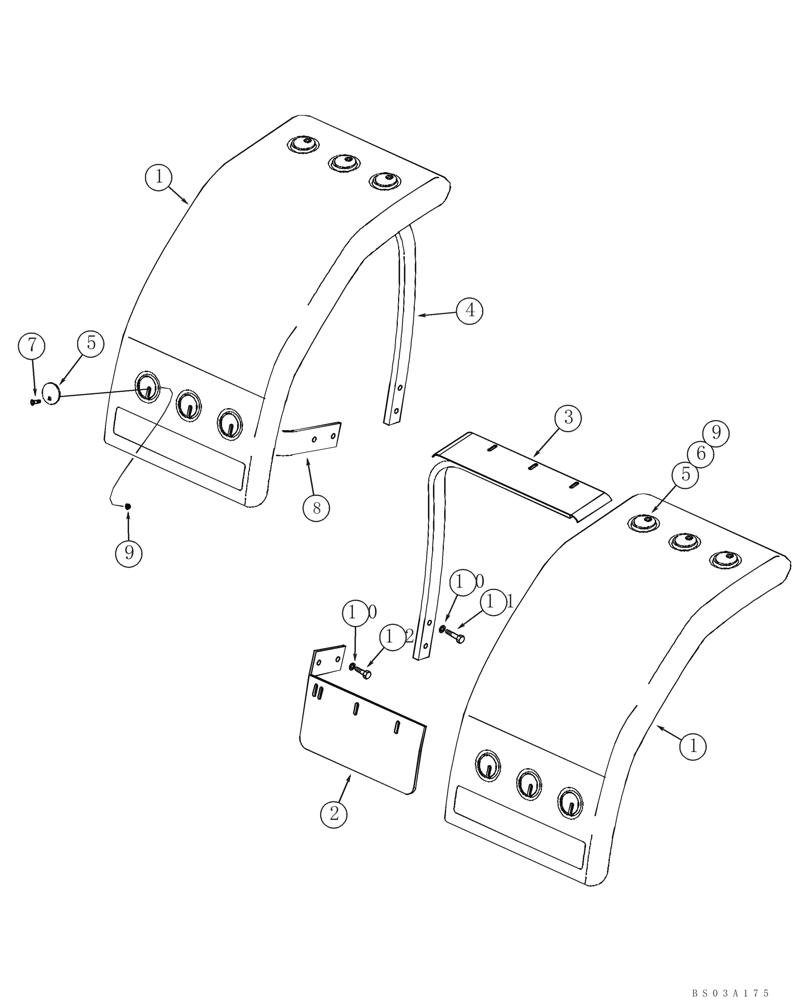

Запчасти Case 721D (09-20) - FENDERS, FRONT - WIDE (09) - CHASSIS

REF

INSTRUCTION

WIDE; IF USED; OTHERWISE SEE FIGURE 09-20A

1шт.

1

402794A2

FENDER

2шт.

2

445005A1

BRACKET

Horizontal

1шт.

3

445009A1

BRACKET

Vertical; RH

1шт.

4

445010A1

BRACKET

Vertical; LH

1шт.

5

345357A1

SQ HOLE WASHER

12шт.

6

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

7

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

6шт.

8

445008A1

BRACKET

Horizontal

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

12шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
