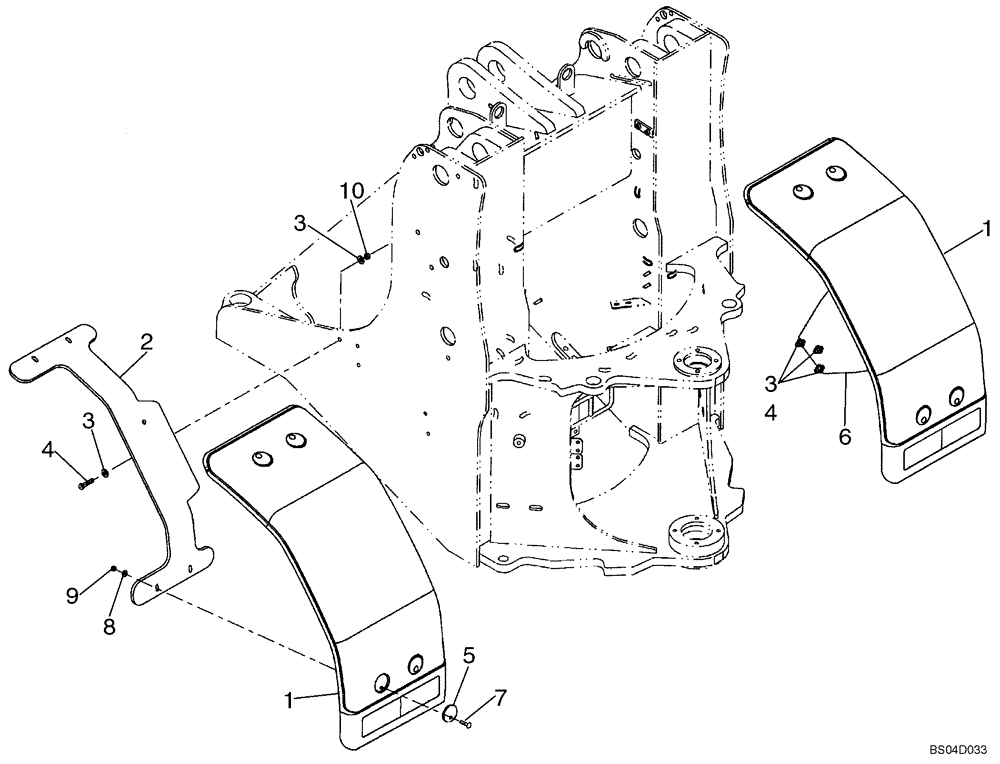

Запчасти Case 721D (09-19A) - FENDERS, FRONT - STANDARD (09) - CHASSIS

REF

INSTRUCTION

STANDARD FRONT FENDER

1шт.

1

402479A2

FENDER

2шт.

2

87432868

BRACKET

Left Side

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

5

345357A1

SQ HOLE WASHER

2-1/2

8шт.

6

87432869

BRACKET

Right Side

1шт.

7

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

8шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

10

829-1412

NUT,M12, Cl 10.9

6шт.
