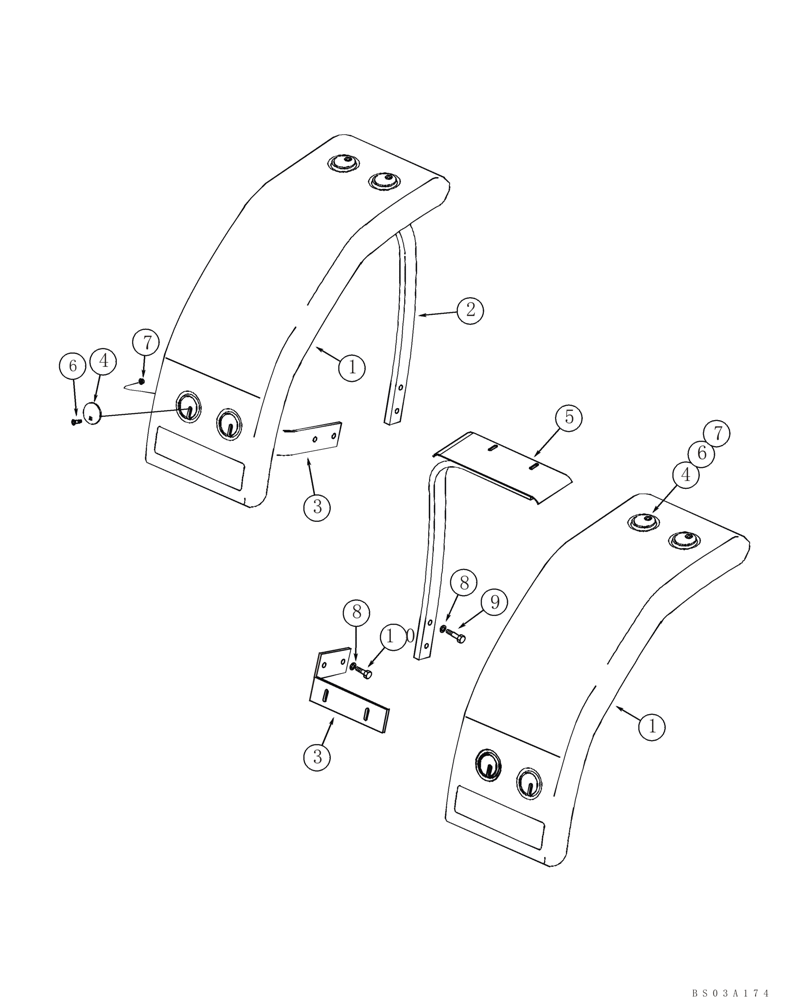

Запчасти Case 721D (09-19) - FENDERS, FRONT - STANDARD (09) - CHASSIS

REF

INSTRUCTION

STANDARD; IF USED; OTHERWISE SEE FIGURE 09-19A

1шт.

1

402479A2

FENDER

2шт.

2

445013A1

BRACKET

Vertical; Left Side

1шт.

3

445011A1

BRACKET

Horizontal

2шт.

4

345357A1

SQ HOLE WASHER

2-1/2

8шт.

5

445012A1

BRACKET

Vertical; RH

1шт.

6

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

8шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
