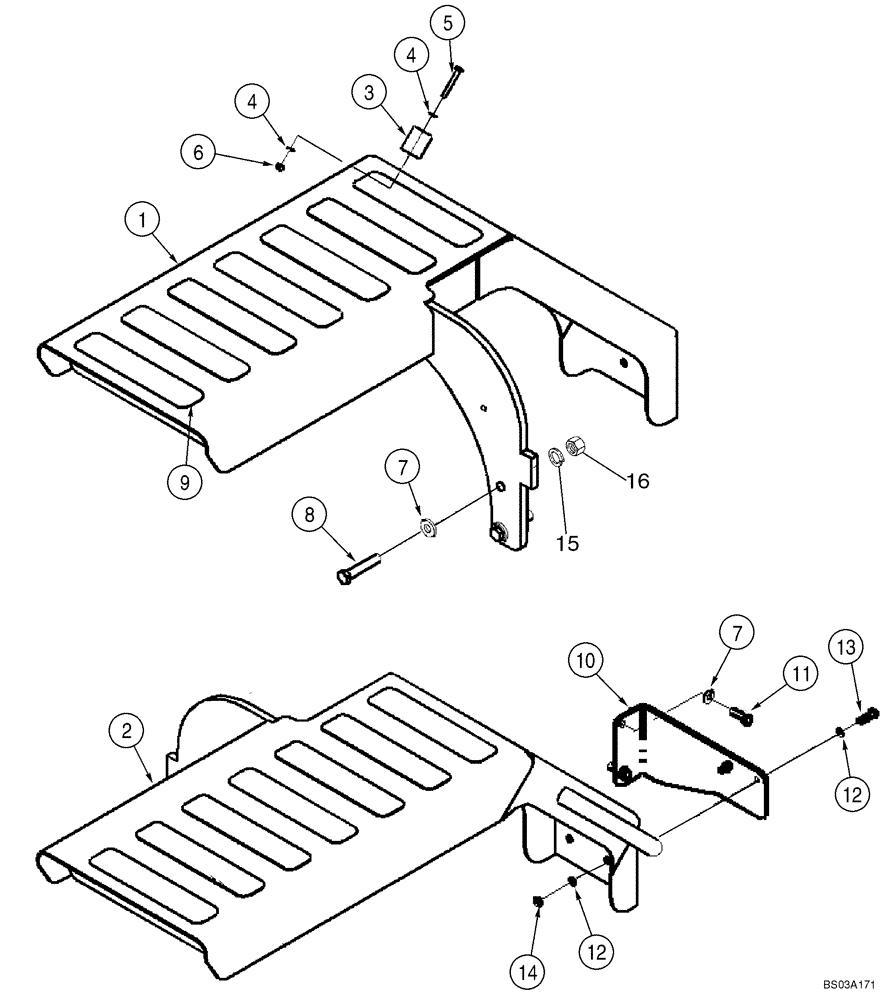

Запчасти Case 721D (09-16) - FENDERS, REAR - STANDARD (09) - CHASSIS

REF

INSTRUCTION

STANDARD REAR FENDERS AND SUPPORT BRACKET

1шт.

1

433660A1

SUPPORT

LH; No Longer Available; Replaced By 87435727

1шт.

1

87435727

SUPPORT

LH; Replaces 433660A1

1шт.

2

433650A1

SUPPORT

RH; No Longer Available; Replaced By 87435728

1шт.

2

87435728

SUPPORT

RH; Replaces 433650A1

1шт.

3

L126483

BUMPER

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

8

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

9

D55216

PAD,2" x 9"

2 x 9 in

16шт.

10

8500675

BRACKET

Support; RH

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

892-11012

LOCK WASHER,M12

4шт.

16

829-1412

NUT,M12, Cl 10.9

4шт.
