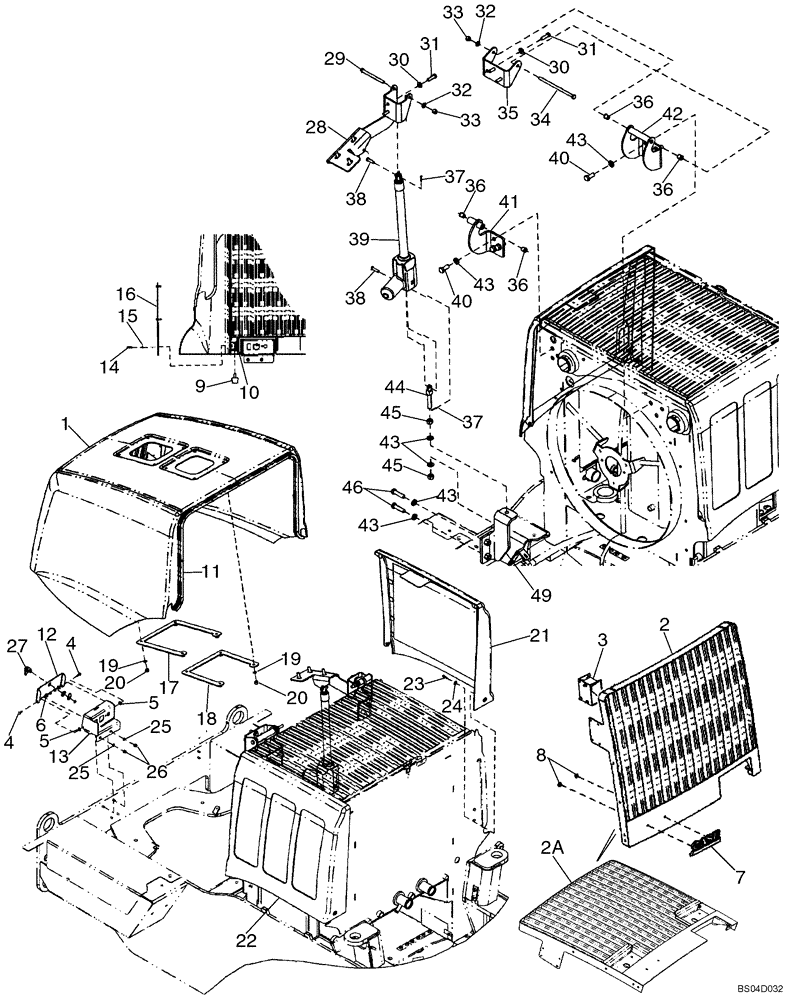

Запчасти Case 721D (09-13) - HOOD (09) - CHASSIS

1

8602805

ENGINE HOOD

If Used; Tan

1шт.

1

87432252

HOOD

Engine; Tan/ CNH CE Gray Gel Coat Tan, Paint CNH CE Gray

1шт.

2

8602768

GRILLE

Without Light Mounting; If Used

1шт.

2a

87447095

GRILLE

With Light Mounting; If Used

1шт.

3

D121972

ALARM

Backup

1шт.

4

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

186989A1

EMBLEM

Case Emblem

1шт.

8

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

9

N7673

BUMPER

2шт.

10

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

11

8602373

SEAL

Hood; No Longer Available; Order 8605846

1шт.

11

8605846

RUBBER SEAL,2385mm L

Hood; Replaces 8602373

1шт.

12

8602709

PLATE

Housing

1шт.

13

8605239

HOUSING

Hood/Electrical Controls

1шт.

14

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

15

892-11006

LOCK WASHER,M6

6шт.

16

444931A1

PLATE

2шт.

17

408196A1

PLATE

1шт.

18

8500382

PLATE

1шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

21

8602803

PANEL

LH; If Used; Tan

1шт.

21

87432253

PANEL

LH; Tan Gel Coat

1шт.

22

8602804

PANEL

RH; If Used; Tan

1шт.

22

87432254

PANEL

RH; Tan Gel Coat

1шт.

23

87021830

HEX SOC SCREW,M6 x 27.5mm, Cl 12.9

M6 x 30; 10,9; Screw

4шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

27

8602791

LOCK

Control Access

1шт.

28

8602717

HINGE

Hood; Left

1шт.

29

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

M12 x 40; 10,9

1шт.

30

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

31

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

32

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

34

827-12220

BOLT,Hex, M12 x 1.75 x 220mm, Cl 10.9

1шт.

35

8501151

HINGE

Hood; Right

1шт.

36

382495A1

BUSHING

4шт.

37

733-3220

COTTER PIN,M3.2 x 20

2шт.

38

729-1040

CLEVIS PIN,10mm OD x 40mm L

2шт.

39

8602475

JACK

Hood Electric Screw

1шт.

40

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

41

8605371

LATCH HOOK

Hood Mount; Left

1шт.

42

8605372

HINGE

Hood Mount; Right

1шт.

43

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

44

8501161

ROD

Screw Jack Adjuster

1шт.

45

829-1416

NUT,M16, Cl 10

2шт.

46

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

47

8602409

BRACKET

Electric Jack Base

1шт.
