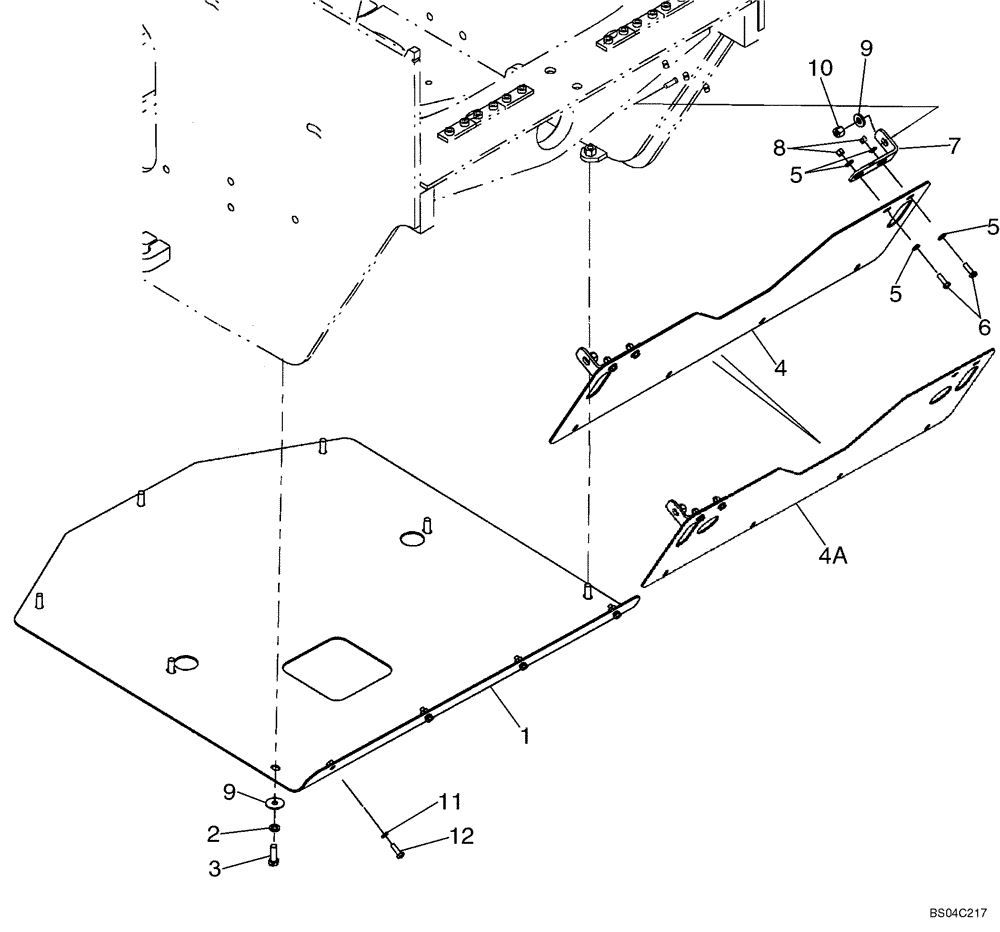

Запчасти Case 721D (09-10) - FRAME, REAR - PLATE, SKID (09) - CHASSIS

1

8602639

SKID PLATE

Skid

1шт.

2

892-11012

LOCK WASHER,M12

7шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

7шт.

4

8602633

SKID PLATE

Skid; If Used

1шт.

4a

87445517

SKID PLATE

Skid; If Used

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

8602638

BRACKET

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

9шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

892-11008

LOCK WASHER,8mm ID

4шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
