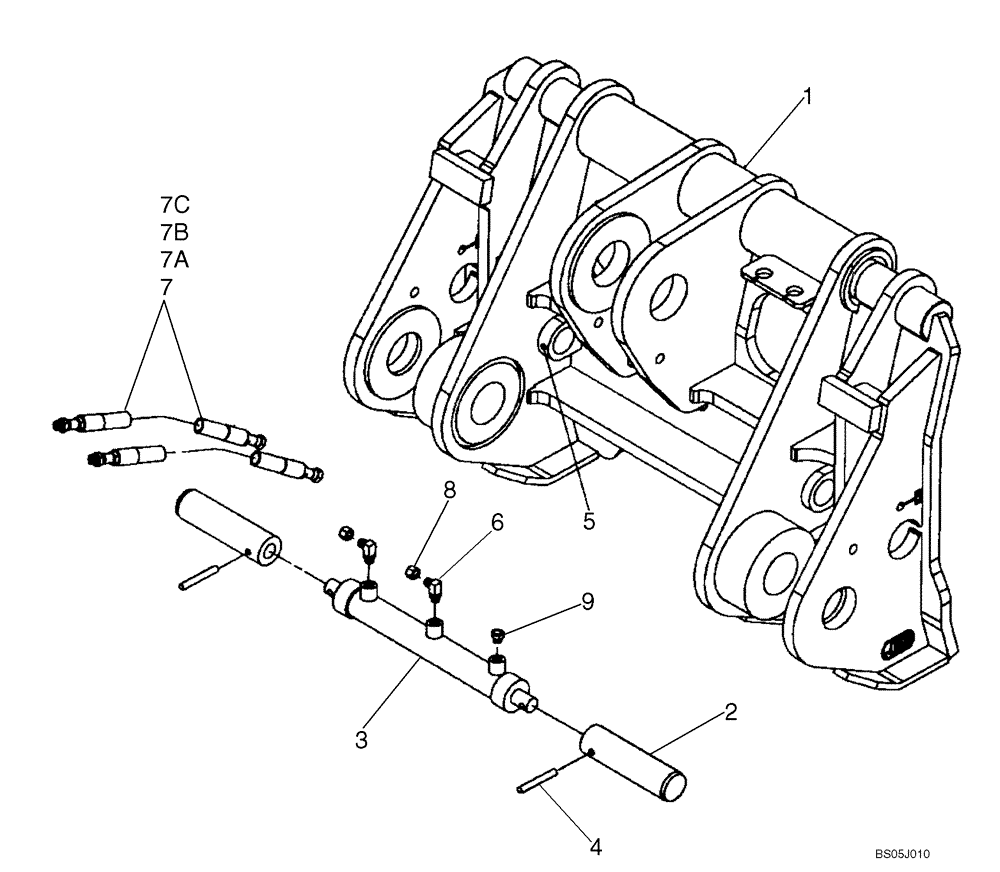

Запчасти Case 721D (09-07A) - COUPLER, HYDRAULIC - Z-BAR - JRB (09) - CHASSIS

REF

INSTRUCTION

87435639, COUPLER ASSEMBLY WITH KIT; JRB; Z-BAR; Vendor Part Number; 92F0013

1шт.

1

REF

INSTRUCTION

COUPLER ASSEMBLY; JRB; Z-BAR; Vendor Part Number; D22144

1шт.

REF

INSTRUCTION

HYDRAULIC KIT; JRB; Z-BAR; Vendor Part Number; 96A0121

1шт.

2

REF

INSTRUCTION

PLUNGER; JRB; Z-BAR; Vendor Part Number; A23264

2шт.

3

REF

INSTRUCTION

HYDRAULIC CYLINDER; JRB; Z-BAR; Vendor Part Number; B17352

1шт.

4

REF

INSTRUCTION

ROLLPIN; 3/8 X 1-3/4; JRB; Z-BAR; Vendor Part Number; 124038000175

2шт.

5

REF

INSTRUCTION

GREASE ZERK; JRB; Z-BAR; Vendor Part Number; A31294-1

2шт.

6

REF

INSTRUCTION

STR THD CONNECTOR 90DEG; JRB; Z-BAR; Vendor Part Number; 46055-02

2шт.

7

REF

INSTRUCTION

HOSE ASSEMBLY; JRB; Z-BAR; Vendor Part Number; 570046-48; Incl. 7A - 7C

2шт.

7a

REF

INSTRUCTION

FITTING; JRB; Z-BAR; Vendor Part Number; 47036-02

1шт.

7b

REF

INSTRUCTION

FITTING; JRB; Z-BAR; Vendor Part Number; 47020-02

1шт.

7c

REF

INSTRUCTION

HOSE; JRB; Z-BAR; Vendor Part Number; 56

1шт.

8

REF

INSTRUCTION

FITTING, CAP; JRB; Z-BAR; Vendor Part Number; 46070-02

2шт.

9

REF

INSTRUCTION

HEX PLUG; JRB; Z-BAR; Vendor Part Number; 46154-05

1шт.

REF

INSTRUCTION

ADJUSTABLE STOP KIT; JRB; Z-BAR; Vendor Part Number; 91V0790

1шт.
