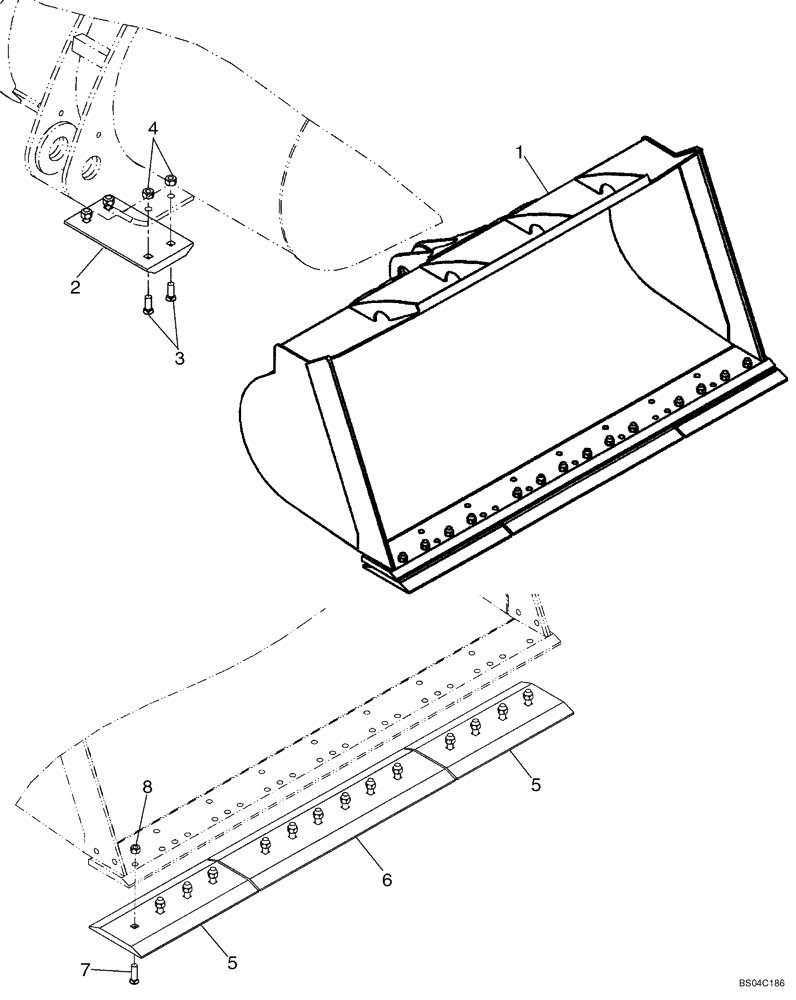

Запчасти Case 721D (09-06) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS (09) - CHASSIS

1

REF

INSTRUCTION

BUCKET/A, 87435640; 2.3 Cubic Meter ( 3.0 Cubic Yards ); For Use With JRB Couplers; Order From Whole Goods; Inc. 2 - 8

1шт.

1

REF

INSTRUCTION

BUCKET/A, 8500233; 2.3 Cubic Meter ( 3.0 Cubic Yards ); For Use With ASC Pro Series 2000 Size 30HD Couplers; Order From Whole Goods; Inc. 2 - 8

1шт.

1

REF

INSTRUCTION

BUCKET/A, 8500416; 2.3 Cubic Meter ( 3.0 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

REF

INSTRUCTION

BUCKET/A, 8500417; 2.5 Cubic Meter (3.25 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

8500427

BUCKET

Assy, 2.7 Cubic Meter ( 3.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

8500180

SKID PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

Hardened

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES

1шт.

5

8500178

CUTTING EDGE

Outer; Bolt On

2шт.

6

8500177

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 330.2mm W x 1219.5mm L

Center; Bolt On

1шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

14шт.

8

329-1016

NUT,1"-8, G8

14шт.
