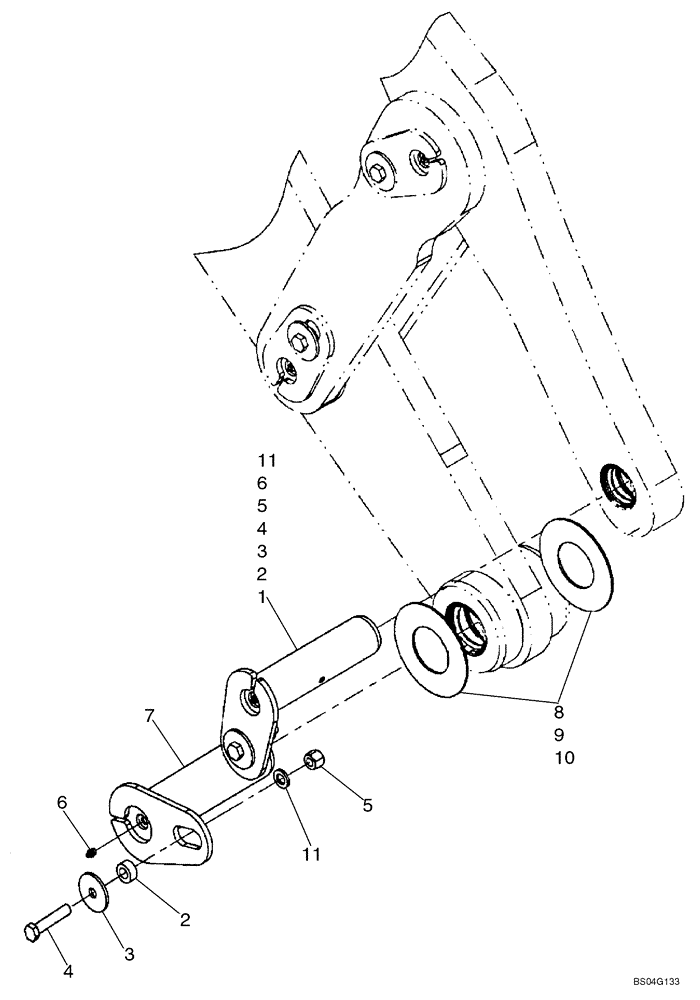

Запчасти Case 721D (09-05A) - BUCKETS - ATTACHMENT (XT LOADER) (09) - CHASSIS

REF

INSTRUCTION

ALL ZINC PLATED PINS HAVE BEEN REMOVED

1шт.

1

87437353

HEADED PIN

Lift Arm Pivot; Production

1шт.

1

87304948

HEADED PIN

Lift Arm; Order For Service

2шт.

2

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Lift Arm

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

7

87437274

HEADED PIN

Lift Arm; Production

1шт.

7

87305040

HEADED PIN,76.2mm OD x 258mm L

Lift Arm; Order For Service

1шт.

8

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

3.5 mm thk

1шт.

9

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

10

441822A1

WASHER

1.6 mm thk

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
