Запчасти Case 721D (09-05) - BUCKETS - ATTACHMENT (Z BAR LOADER) (09) - CHASSIS

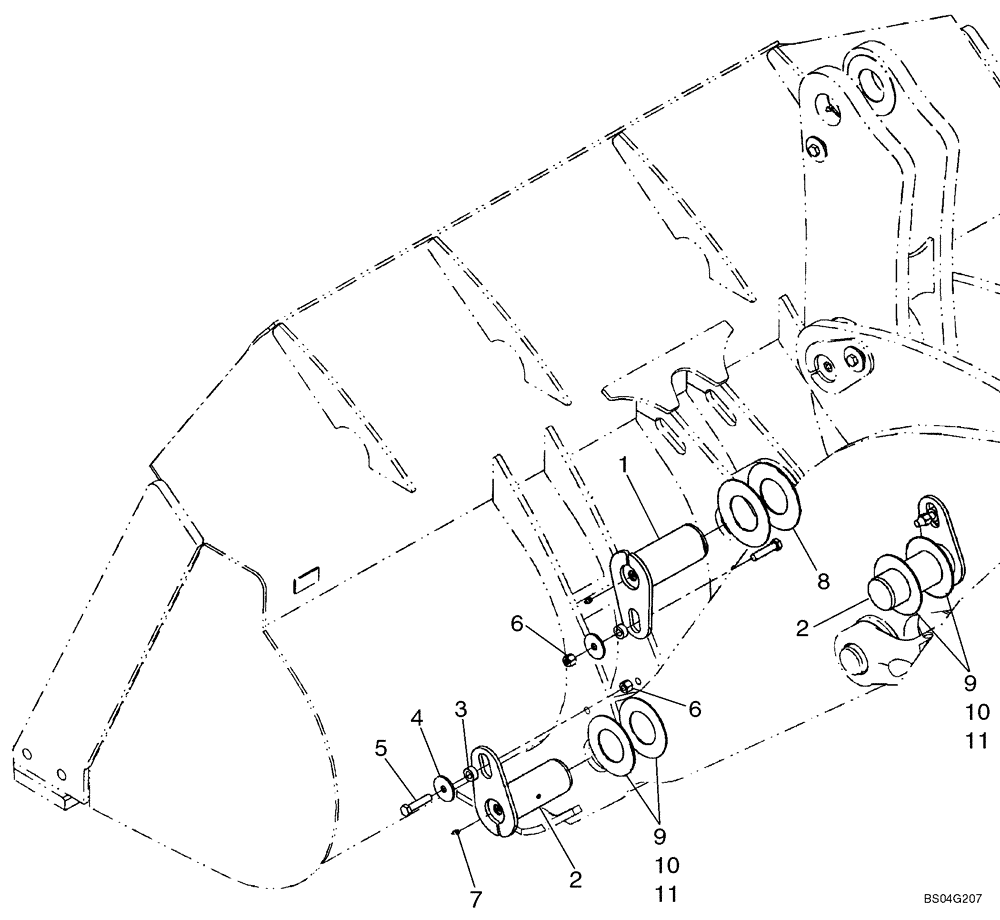

Схема запчастей Case 721D - (09-05) - BUCKETS - ATTACHMENT (Z BAR LOADER) (09) - CHASSIS
6
2
7
6
2
10
4
11
5
9
3
8
10
9
1
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Z-BAR LOADER

1шт.

REF

INSTRUCTION

ALL ZINC PLATED PIN NUMBERS HAVE BEEN REMOVED

1шт.

1

87305151

HEADED PIN

Bucket; Case Power Tan; Replaces 442158A1 For Service

1шт.

2

87305148

HEADED PIN

Lift Arm; Case Power Tan; Replaces 437295A1 For Service

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

87642053

WASHER,91mm ID x 170mm OD x 3.5mm Thk

3.5 mm Thk, 91 mm ID; Replaces L128721 90 mm ID Washer Used on Some Models

1шт.

9

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

1шт.

10

441824A1

WASHER

1шт.

11

441823A1

WASHER

1шт.

Выбрано товаров: 13
