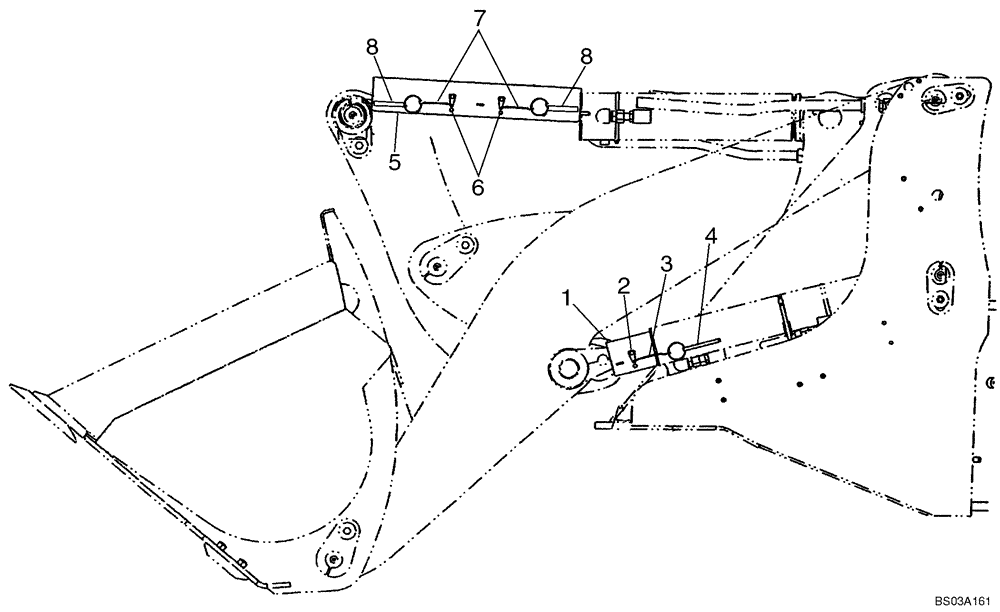

Запчасти Case 721D (09-04) - LOADER LIFT (Z BAR LOADER) - TRANSPORT OPTION (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

REF

INSTRUCTION

ROAD TRANSPORT

1шт.

REF

INSTRUCTION

GERMAN AND ITALIAN MODELS ONLY

1шт.

8500825

LOCK CYLINDER

Lift Cylinder; Incl. 1 - 4; German And Italian Models

1шт.

1

8500824

STOP

1шт.

2

L300295

RETAINER

1шт.

3

L303000

CHAIN (CE)

305 mm (12 in)

1шт.

4

185166A1

PIN

Cylinder Lock

1шт.

8500827

LOCK CYLINDER

Tilt Cylinder; Incl. 5 - 8; Italian Models

1шт.

5

8500826

STOP

1шт.

6

L300295

RETAINER

2шт.

7

L303000

CHAIN (CE)

305 mm (12 in)

2шт.

8

185166A1

PIN

2шт.
