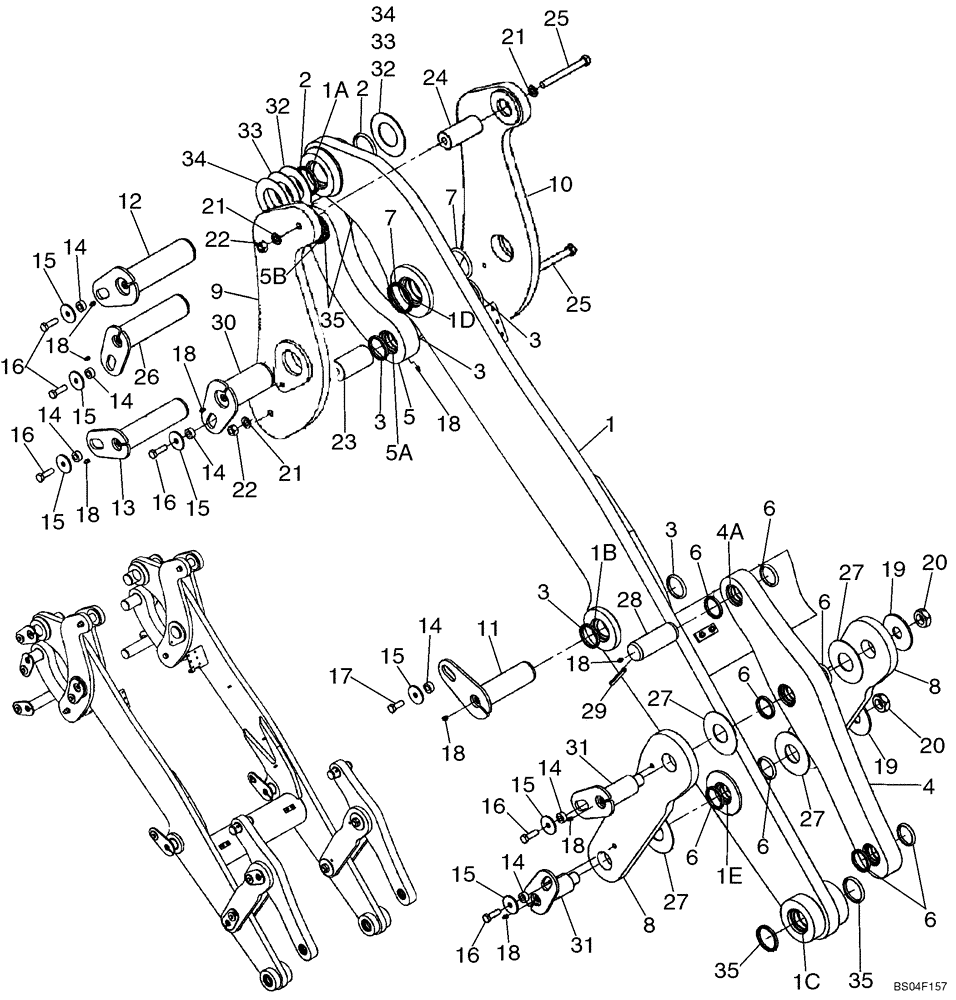

Запчасти Case 721D (09-03B) - FRAME - LOADER LIFT AND LINKAGE ( XT ) (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

REF

INSTRUCTION

ALL ZINC PLATED PINS HAVE BEEN REMOVED

1шт.

1

87452547

LIFT ARM

XT Loader; Incl. 1A-1E

1шт.

1a

87440165

BUSHING

Lift Arm

2шт.

1b

358626A2

BUSHING,70.16mm ID x 82.66mm OD x 79mm L

Dump Link

2шт.

1c

87434071

BUSHING

Lift Arm

4шт.

1d

87434108

BUSHING

Bellcrank Pivot

2шт.

1e

369433A2

BUSHING

Anchor Link

2шт.

2

365523A1

WIPER SEAL

Rod; 82.5

4шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod; 69.8

8шт.

4

87433782

LINKAGE

Dump; Incl. 4A

2шт.

4a

87613428

BUSHING,63.8mm ID x 76.31mm OD x 48mm L

Anchor Link; Replaces 369433A2

3шт.

5

87453639

LINKAGE

Anchor; Incl. 5A, 5B

2шт.

5a

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor Link; Replaces 8500303

1шт.

5b

87613431

BUSHING,76.55mm ID x 89.99mm OD x 45mm L

Lift Arm; Replaces 379066A2

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod; 63.5

16шт.

7

S92653

WIPER

Rod; 88.9

4шт.

8

87433778

LINKAGE

Guide

4шт.

9

87453637

LINKAGE

Bellcrank; RH

2шт.

10

87453635

LINKAGE

Bellcrank; LH

2шт.

11

437168A1

PIN

Lift Arm Case Power Tan

2шт.

12

87437072

HEADED PIN

Lift Arm Case Power Tan

2шт.

13

443136A1

PIN,69.85mm OD x 290.5mm L

Lift Arm Case Power Tan

2шт.

14

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

16

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Dryseal PTF

18шт.

19

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

HDN

4шт.

20

131-53

NUT,1 1/2"-12

P/TRQ Thin, Insert

4шт.

21

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

22

829-1420

NUT,M20, Cl 10

4шт.

23

8500311

PIN,69.85mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

24

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

25

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

26

435593A1

PIN

Lift Arm Case Power Tan

2шт.

27

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

HDN

8шт.

28

87437183

PIN

Tilt Cylinder

2шт.

29

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

30

87437159

HEADED PIN

Bellcrank; CNH CE Gray

2шт.

31

87437223

HEADED PIN

Guide Link; CNH CE Gray

4шт.

32

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

77.6 ID; 3.5 Thick

1шт.

33

441824A1

WASHER

83.9 ID; 2.5 Thick

1шт.

34

441823A1

WASHER

83.9 ID; 1.6 Thick

1шт.

35

D95148

WIPER SEAL

Rod; 76.2

8шт.
