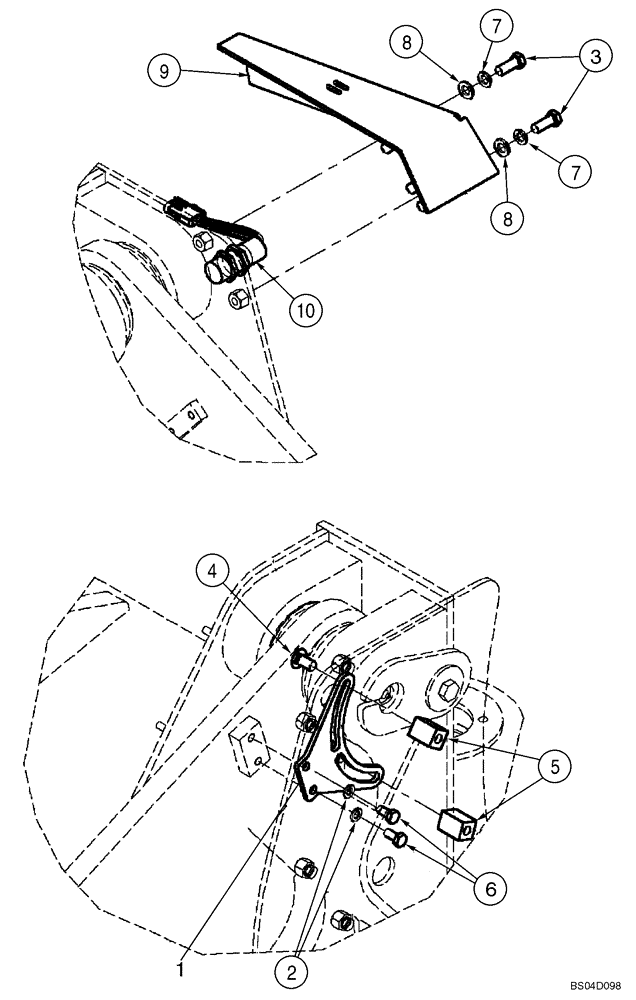

Запчасти Case 721D (09-02) - CONTROLS - BUCKET HEIGHT AND RETURN-TO-TRANSPORT ( Z BAR ) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR

1шт.

1

379149A2

MOUNTING PLATE

Mounting

1шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

Z-Bar

2шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

XT

2шт.

4

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

5

379638A2

BLOCK

Proximity Switch; No Longer Used For This Application; Order 87437102

2шт.

5

87437102

BLOCK

Proximity Switch; Replaces 379638A2; 5mm Shorter Than 379638A2

2шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Z-Bar

2шт.

7

892-11012

LOCK WASHER,M12

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

400075A1

COVER

Proximity Switch; No Longer Used For This Application; Order 87430084

1шт.

9

87430084

COVER

Proximity Switch; 3/4in Shorter Than 400075A1

1шт.

10

1546498C1

SWITCH

Proximity

1шт.
