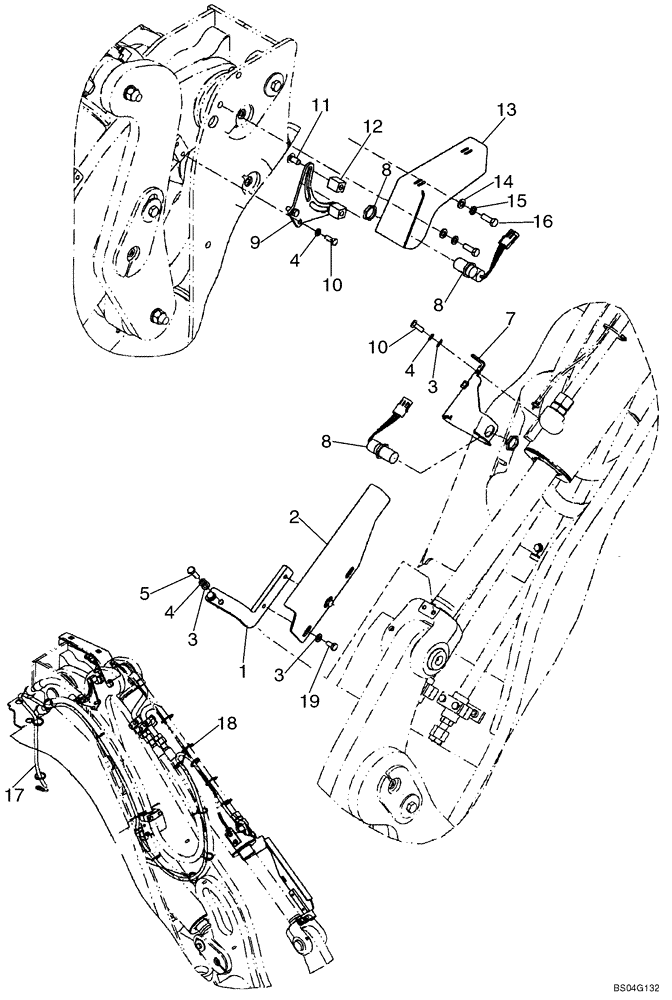

Запчасти Case 721D (09-01A) - CONTROL - RTD-RTT-HGT (XT LOADER) (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

1

87304560

BRACKET

Return To Dig

1шт.

2

87441485

BRACKET

RTD Target; If Used; Length 538mm

1шт.

2

87324778

BRACKET

RTD TargetI; If Used; Length 528mm

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2,5 mm

6шт.

4

892-11010

LOCK WASHER,M10

6шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

7

87441373

BRACKET

Proximity Switch; If Used

1шт.

7

87310689

BRACKET

Switch Guard; If Used

1шт.

8

1546498C1

SWITCH

Proximity

2шт.

9

379149A2

MOUNTING PLATE

Target Mount

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

11

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

87437102

BLOCK

Proximity Switch

2шт.

13

87430084

COVER

Proximity Switch

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

892-11012

LOCK WASHER,M12

2шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

17

87445640

WIRE HARNESS

RTD XT

1шт.

17

396585A1

WIRE HARNESS

RTD XT; If Used

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

12шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.
