(08-25A) - COUPLER SYSTEM - DIAGNOSTIC LINES

Запчасти Case 721D (08-25A) - COUPLER SYSTEM - DIAGNOSTIC LINES (08) - HYDRAULICS

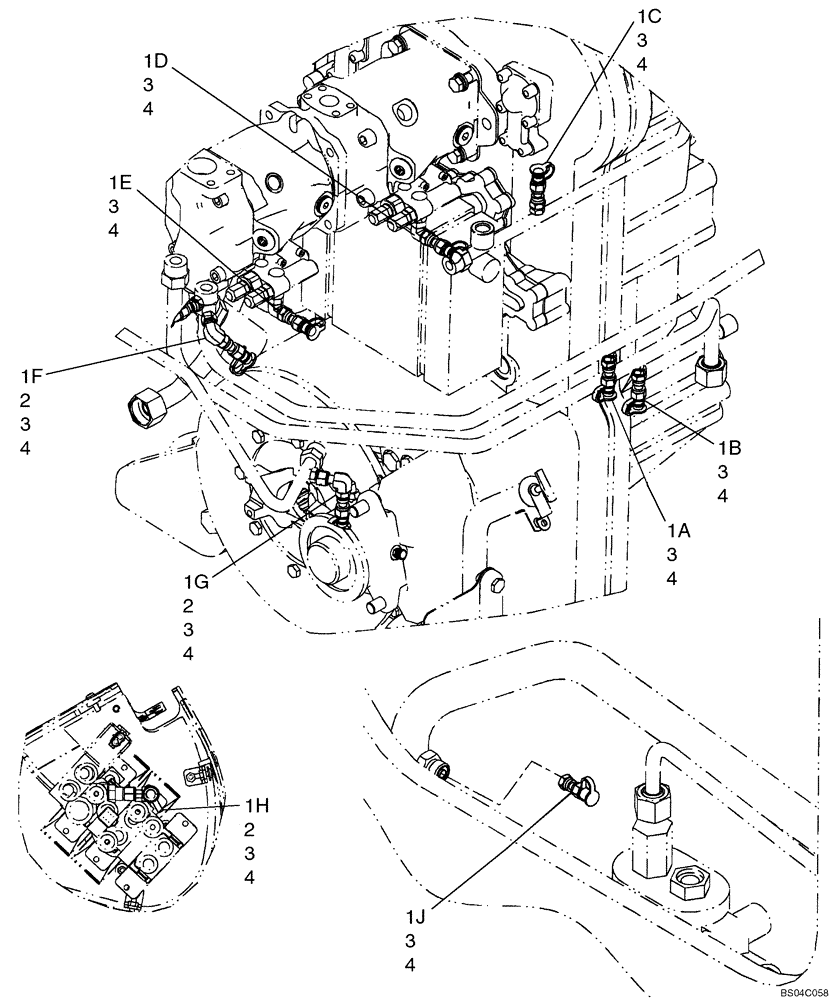

Схема запчастей Case 721D - (08-25A) - COUPLER SYSTEM - DIAGNOSTIC LINES (08) - HYDRAULICS
1b
3
1h
3
4
4
3
3
4
1c
3
3
1j
2
1d
2
1a
1g
3
4
1f
1e
3
2
4
4
4
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

190117A1

COUPLING

Diagnostic; Incl 3, 4

9шт.

1a

190117A1

COUPLING

Tube; Rear Brake Accumulator

1шт.

1b

190117A1

COUPLING

Tube; Front Brake Accumulator

1шт.

1c

190117A1

COUPLING

Tube; Rear Axle Brake

1шт.

1d

190117A1

COUPLING

Steering Pump

1шт.

1e

190117A1

COUPLING

Loader Pump

1шт.

1f

190117A1

COUPLING

Hose; Loader Pressure

1шт.

1g

190117A1

COUPLING

Tube; Front Axle Brake

1шт.

1h

190117A1

COUPLING

Hose; Pilot Pressure

1шт.

1j

190117A1

COUPLING

Tube; Steering Pressure

1шт.

2

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

ORFS 90 deg Swivel Nut; 6mm Or 1/4 in; Incl. 3

3шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

H434163

DUST CAP

1шт.
