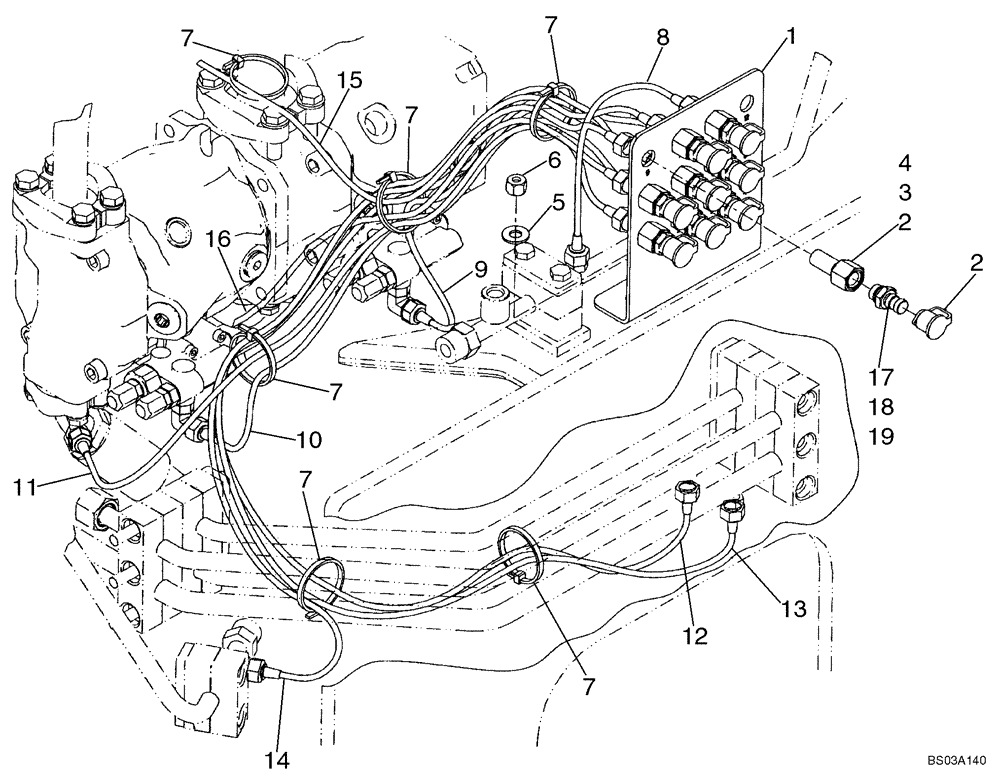

Запчасти Case 721D (08-25) - HYDRAULICS - DIAGNOSTIC LINES (08) - HYDRAULICS

1

8500560

PANEL

Diagnostic

1шт.

2

8500920

FITTING

9/16 x M14; Incl. 3, 4

9шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

10шт.

8

8500693

FLEXIBLE HOSE

255 mm ( 10 in ); Diagnostic; Rear Axle Brake

1шт.

9

8500694

FLEXIBLE HOSE

585 mm ( 23 in ); Diagnostic; Steering Pump

1шт.

10

8500695

FLEXIBLE HOSE

685 mm ( 27 in ); Diagnostic; Loader Pump

1шт.

11

8500700

FLEXIBLE HOSE

835 mm ( 32-3/4 in ); Diagnostic; Loader Pressure

1шт.

12

8500696

FLEXIBLE HOSE

1305 mm ( 51-1/3 in ); Diagnostic; Rear Brake Accumulator

1шт.

13

8500728

FLEXIBLE HOSE

1305 mm (51-1/3 in ); Diagnostic; Front Brake Accumulator

1шт.

14

8500697

FLEXIBLE HOSE

1005 mm ( 40 in ); Diagnostic; Front Axle Brake

1шт.

15

8605215

FLEXIBLE HOSE

1460 mm ( 57-1/2 in ); Diagnostic; Steering Pressure

1шт.

16

8500699

FLEXIBLE HOSE

1765 mm ( 70 in ); Diagnostic; Pilot Pressure

1шт.

17

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. 18, 19

9шт.

18

143349A1

DUST CAP

Dust

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
