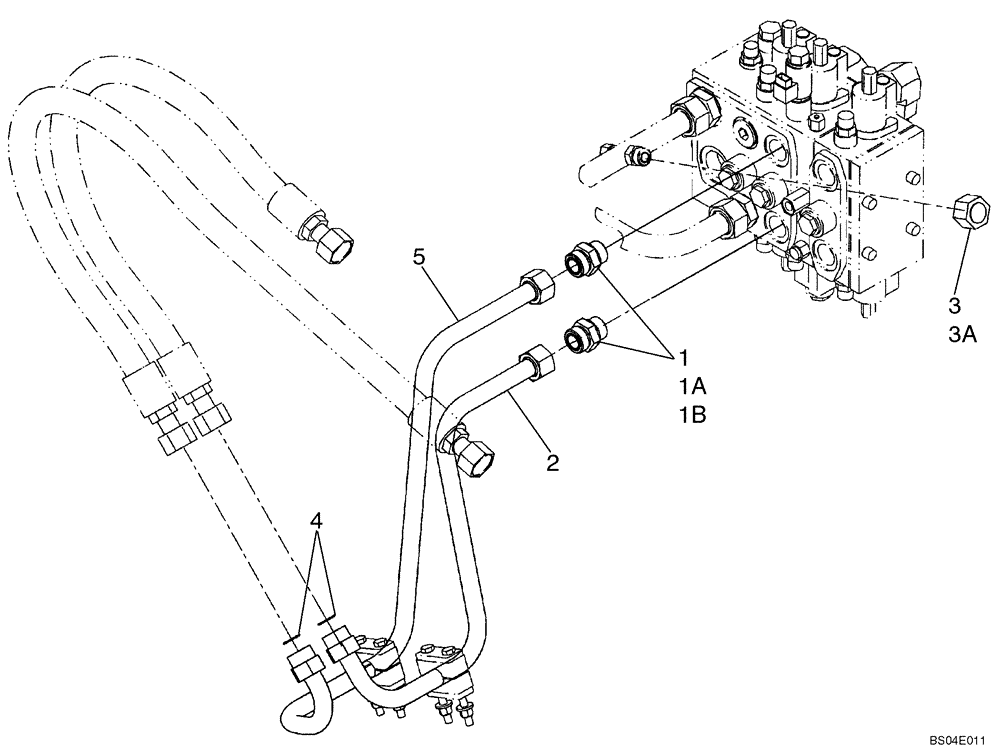

Запчасти Case 721D (08-24C) - HYDRAULIC LINES - NON RIDE CONTROL (Z-BAR) (08) - HYDRAULICS

1

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B

2шт.

1a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

8500537

HYD TUBE

Models without Ride Control

1шт.

3

701-901

CAP,1-7/16" - 12

Incl. 3A

1шт.

3a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

5

8500525

HYD TUBE

Lower RH

1шт.
