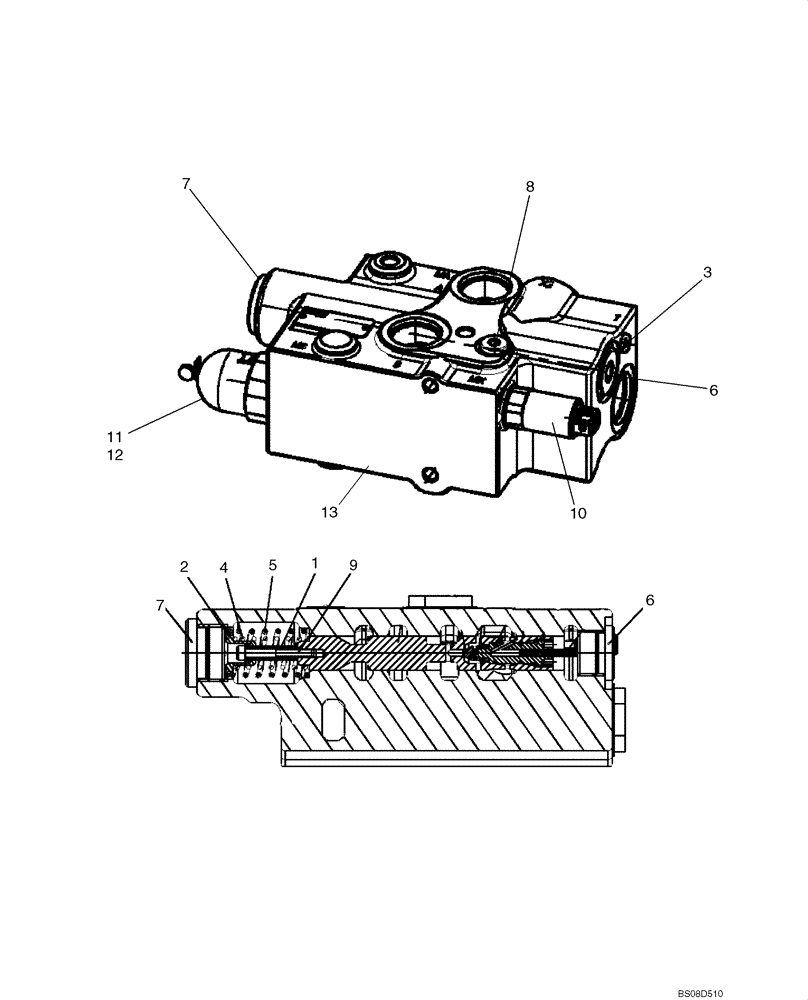

Запчасти Case 721D (08-24A) - VALVE ASSY - RIDE CONTROL DIRECTIONAL (RSM-2) (08) - HYDRAULICS

87440148

HYDRAULIC VALVE

Ride Control RSM2-16; Incl. Refs. 1 - 13

1шт.

1

87453761

BUSHING

1шт.

2

87453762

SPRING

Carrier

1шт.

3

87453765

BLEED SCREW

M6 x 20

1шт.

4

87453766

SPRING

1шт.

5

87453767

SPRING

1шт.

6

87453768

PLUG

3/4 in

1шт.

7

87453769

PLUG

1 in

1шт.

8

87453770

PLUG

M14 x 1.5

1шт.

9

87453771

HEX SOC SCREW,M5 x 40mm, Gr 8.8

M5 x 40, Cl 8.8

1шт.

10

87453772

SOLENOID VALVE

1шт.

11

87453773

VALVE PRESSURE RELIE

1шт.

12

87494562

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK, CONTROL

1шт.
