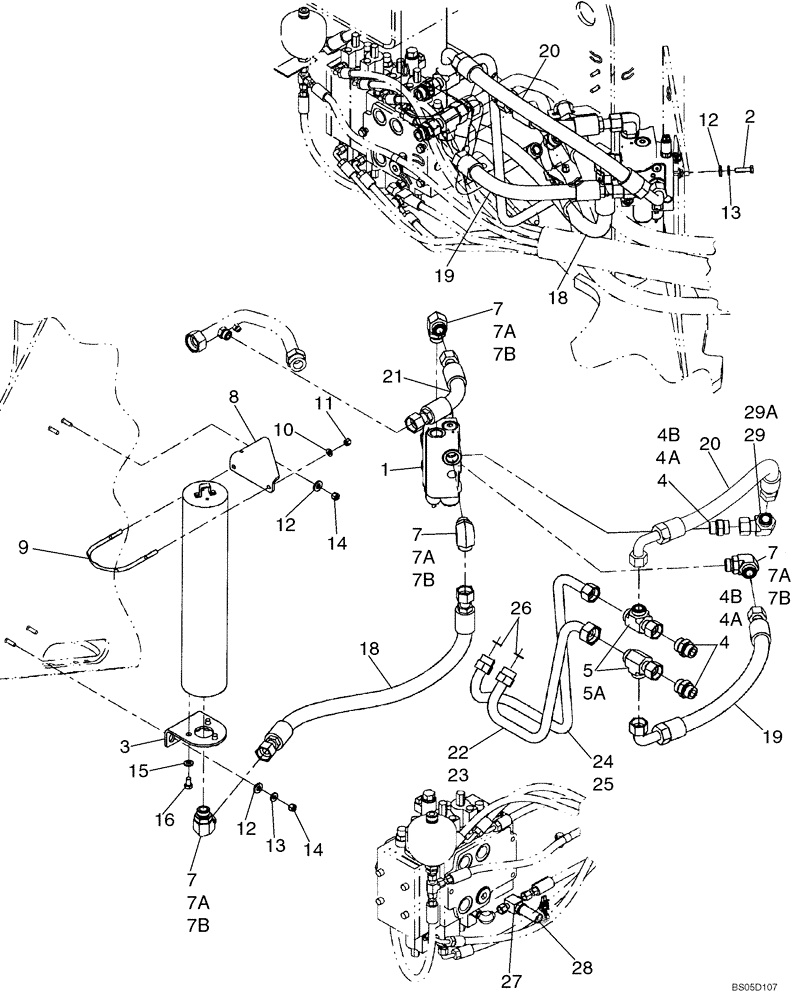

Запчасти Case 721D (08-24) - HYDRAULICS - RIDE CONTROL - IF USED (08) - HYDRAULICS

1

87440148

HYDRAULIC VALVE

Ride Control; RSM2-16

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

3

87403346

BRACKET

Accumulator; CNH CE Gray

1шт.

4

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

25MM ORFS x M33 ORB; Incl. 4A, 4B

3шт.

4a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

4b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

25mm Or 1 in

2шт.

5a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

6

87431765

ACCUMULATOR

Ride Control; 3.78L; Black

1шт.

6

8605651

ACCUMULATOR

Ride Control; 3.78L; Europe

1шт.

7

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Adj., 25mm ORFS x M33 ORB; Incl. 7A, 7B

4шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

87403347

BRACKET

Accumulator; CNH CE Gray

1шт.

9

L128472

U-BOLT

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

16

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

3шт.

17

374425A2

SWITCH

Ride Control; Not Illustrated; See Figure 04-03 Item 22

1шт.

18

87442515

FLEXIBLE HOSE

Ride Control Accumulator; 903mm ( 35 1/2 in)

1шт.

19

87442516

FLEXIBLE HOSE

Ride Control; Base; 618mm ( 24 5/16 in )

1шт.

20

87305431

FLEXIBLE HOSE

Assy, Ride Control; Rod; 791mm ( 31 1/8 in )

1шт.

21

87442518

FLEXIBLE HOSE

Ride Control; Tank; 330mm ( 13 in )

1шт.

22

8500535

HYD TUBE

Lift Base Right; Z-Bar or XR Models; If Used

1шт.

22

87307826

HYD TUBE

Lift Base Right; Z-Bar or XR Models; If Used

1шт.

23

87440461

HYD TUBE,25 mm OD x 393, 296 mm L

Lift Base Right; XT Model; If Used

1шт.

23

87307827

HYD TUBE

Lift Base Right; XT Model; If Used

1шт.

24

87442545

HYD TUBE,25 mm DIA

Lift Rod Right; Z-Bar or XR Models

1шт.

25

87442547

HYD TUBE,25 mm DIA

Lower RH; XT Model

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

27

87445673

FITTING

Pressure Switch; XT Model

1шт.

28

446183A1

PRESSURE SWITCH

Rollback; XT Model

1шт.

29

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

25mm or l in; Incl. 29A

1шт.

29a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

87312626

RELAY,24V

Not Illustrated

1шт.

87453403

WIRE HARNESS

Not Illustrated

1шт.

304083A1

DECAL

Not Illustrated

2шт.
