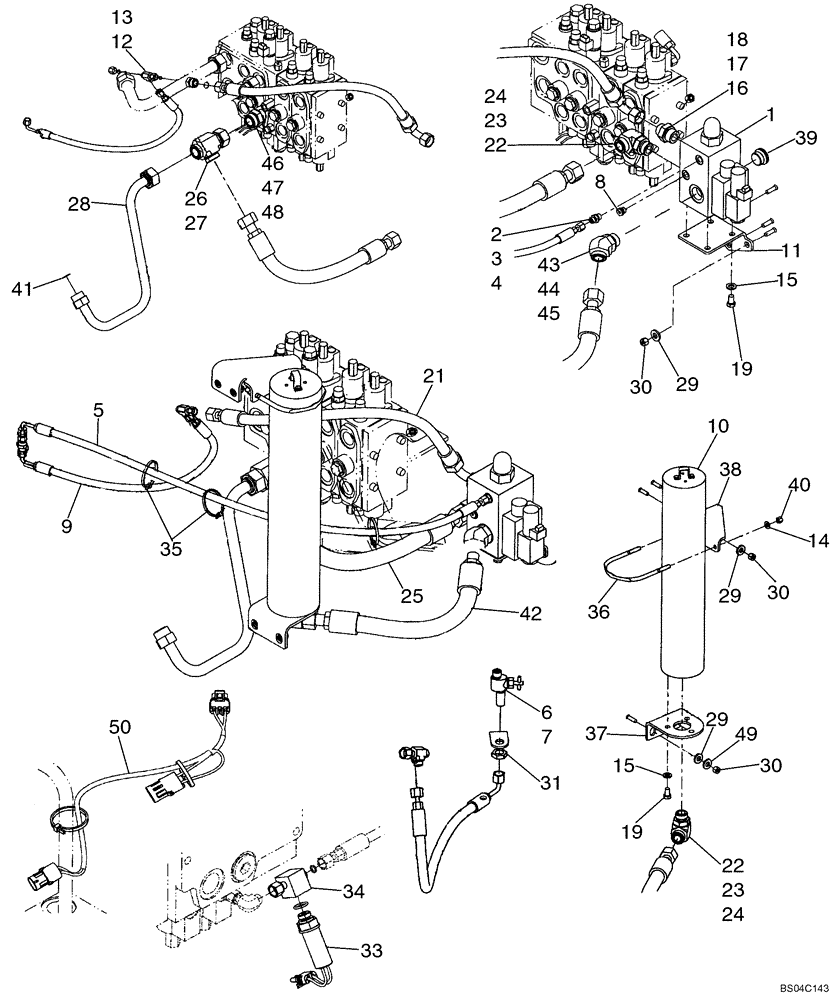

Запчасти Case 721D (08-23) - HYDRAULICS - RIDE CONTROL (IF USED) (08) - HYDRAULICS

REF

INSTRUCTION

DIRECTIONAL VALVE TO LOADER VALVE

1шт.

1

390203A1

VALVE, CONTROL

Directional Control; See Figure 08-36

1шт.

2

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 ORB x 8mm ORFS; Incl. 3, 4

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

8602697

FLEXIBLE HOSE

1216 mm ( 47-7/8 in ); Manual Valve

1шт.

6

397939A1

BLEEDER VALVE

Incl. 7

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

8

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

9

8602567

FLEXIBLE HOSE

631 mm ( 24-7/8 in); lg; Bleed Valve Tank

1шт.

10

87400231

ACCUMULATOR

Ride Control; Replaced by 8605667

1шт.

10

8605667

ACCUMULATOR

Ride Control; Replaces 87400231

1шт.

11

8602716

BRACKET

Ride Control; CNH CE Gray

1шт.

12

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 13

1шт.

13

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

15

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

16

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

20 mm ORFS x 33 M ORB; Incl. 17, 18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

7шт.

21

8602729

FLEXIBLE HOSE

858 mm ( 33-3/4 in); Ride Control Tank

1шт.

22

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Adj., 25mm ORFS x M33 ORB; Incl. 23, 24

2шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

8602696

FLEXIBLE HOSE

556 mm ( 21-7/8 in); Ride Control Cylinder

1шт.

26

701-448

TEE,1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl. 27

1шт.

27

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

2шт.

28

8500535

HYD TUBE

Lift Cylinder; Base Right

1шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

31

701-1254

BHD LOCK NUT,9/16" - 18

M6

1шт.

33

446183A1

PRESSURE SWITCH

Used On XT Models

1шт.

34

397547A1

FITTING

Pressure Switch; Used on XT Models

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

36

L128472

U-BOLT

1шт.

37

87403346

BRACKET

Accumulator; CNH CE Gray

1шт.

38

87403347

BRACKET

Accumulator; CNH CE Gray

1шт.

39

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

40

231-1446

NUT,3/8" - 16, Gr 5

2шт.

41

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

42

8602695

FLEXIBLE HOSE

463 mm ( 18-1/4 in); Ride Control Accumulator

1шт.

43

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Adj., 25mm Tube OD, Incl. 44, 45

1шт.

44

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

45

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

46

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

30mm ORFS x M33 ORB; Incl. 47, 48

1шт.

47

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

48

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

49

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

50

446193A1

WIRE HARNESS

Jumper- Used on XT Models

1шт.
