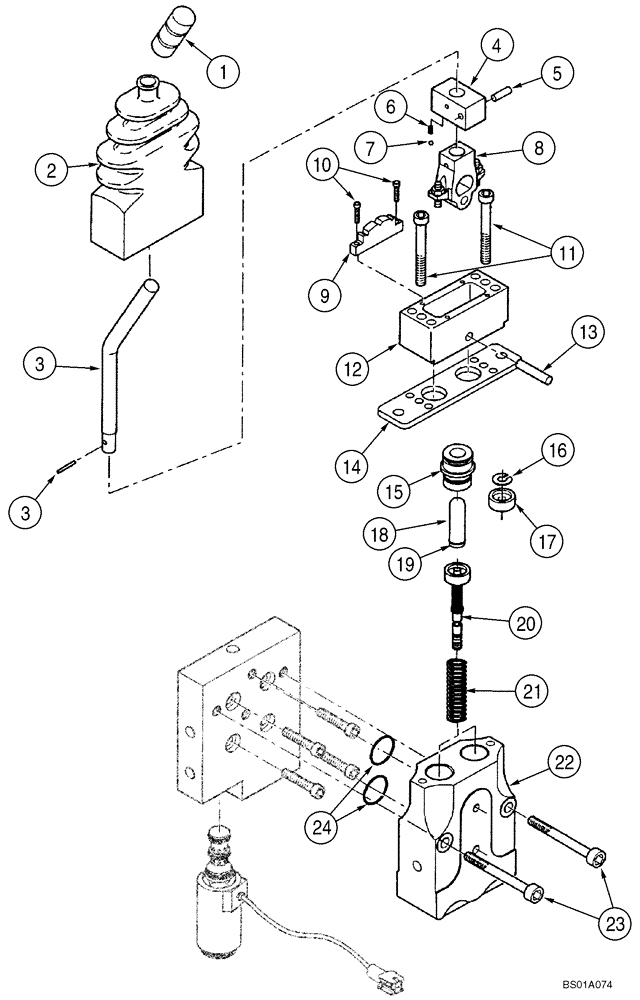

Запчасти Case 721D (08-20A) - VALVE ASSY - JOYSTICK WITH DUAL LEVER (08) - HYDRAULICS

414393A1

JOYSTICK

Joystick with Dual Lever; Incl. 1 - 25; Replaced by 87430914

1шт.

87430914

JOYSTICK

Joystick with Dual Lever; Incl. 1 - 26; Replaces 414393A1

1шт.

8604593

LEVER ASSY & KNOB

Assembly Valve; Incl. 1 - 21

2шт.

1

8604543

GRIP

1шт.

2

8604544

BOOT

Rubber

1шт.

8604546

KIT

Operation; Incl. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

Lever

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Lock

1шт.

6

NSS

NOT SOLD SEPARAT

Spring

1шт.

7

NSS

NOT SOLD SEPARAT

Ball

1шт.

8

NSS

NOT SOLD SEPARAT

Cam

1шт.

9

NSS

NOT SOLD SEPARAT

Lock

1шт.

10

NSS

NOT SOLD SEPARAT

M3 x 12, Screw

2шт.

11

NSS

NOT SOLD SEPARAT

M6 x 50, Screw

2шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

NSS

NOT SOLD SEPARAT

Pin

1шт.

14

8604545

RETAINING PLATE

1шт.

8604255

REPAIR KIT

Plunger; Incl. 15 - 19

2шт.

15

NSS

NOT SOLD SEPARAT

Guide

1шт.

16

NSS

NOT SOLD SEPARAT

Washer

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

NSS

NOT SOLD SEPARAT

Plunger

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

20

8604548

REGULATOR

Plate; Retaining

2шт.

21

8604549

KIT

Set of Two

1шт.

22

NSS

NOT SOLD SEPARAT

Housing

1шт.

23

NSS

NOT SOLD SEPARAT

M8 x 80 Screw

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, 1,5 x 17; Order Ref 25

2шт.

25

8604876

SEAL KIT

Not Illustrated

1шт.

26

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

See Ref 23

2шт.
