Запчасти Case 721D (08-20) - LOADER CONTROL - JOYSTICK WITH DUAL LEVER (08) - HYDRAULICS

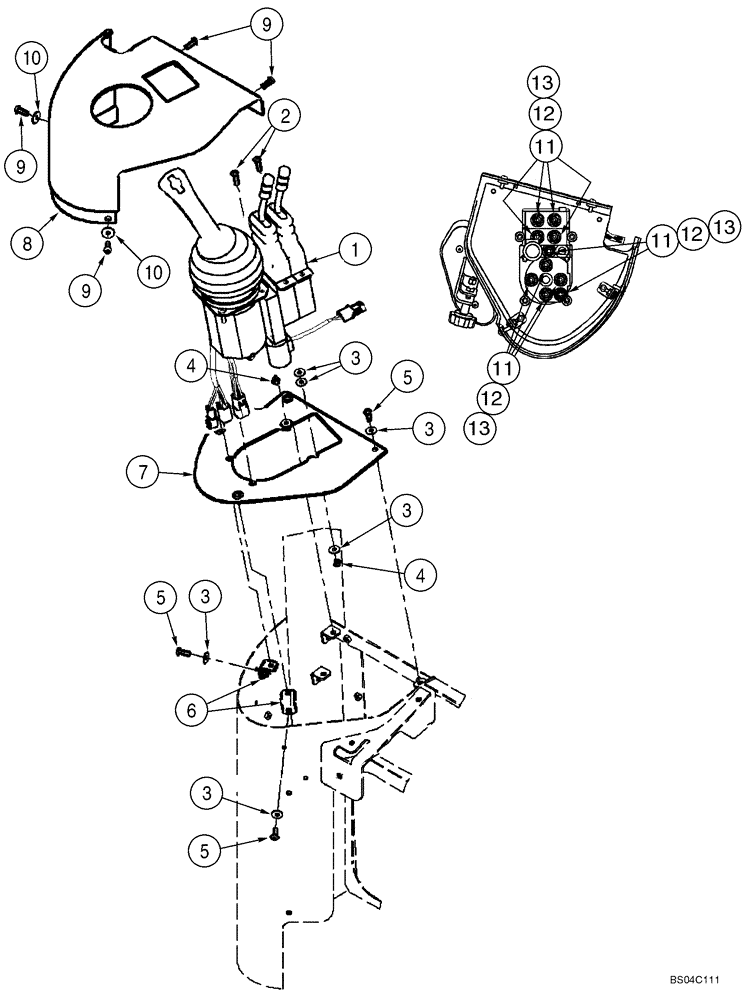

Схема запчастей Case 721D - (08-20) - LOADER CONTROL - JOYSTICK WITH DUAL LEVER (08) - HYDRAULICS
3
6
5
1
11
13
12
9
10
9
12
12
4
5
3
11
9
10
5
4
13
13
3
3
7
11
2
3
8

Артикул

Название

Примечание

Количество

1

414393A1

JOYSTICK

Joystick with Dual Lever; Incl. Figures 08-18-18B, 20A; Replaced by 87430914; Incl. 2 - 13

1шт.

1

87430914

JOYSTICK

Joystick with Dual Lever; Incl. Figures 08-18-18B, 20A; Replaces 414393A1; Incl. 2 - 13

1шт.

2

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

4

832-10406

NUT,M6 x 1, Cl 8

6шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

6

400843A2

BRACKET

2шт.

7

400977A2

PLATE

1шт.

8

400403A1

COVER

1шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

10

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

10шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 14
